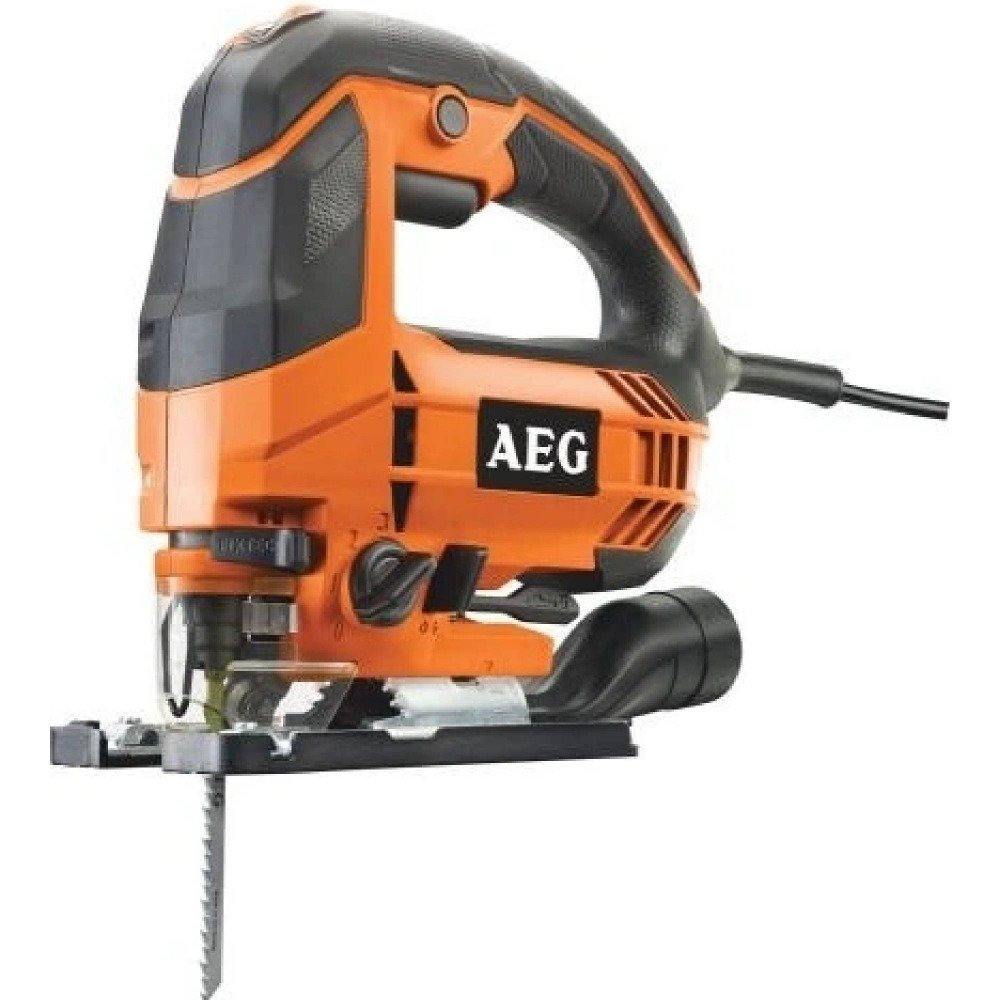

AEG STEP 100 4935451001 700W Electric Jigsaw
Professional 700 W corded pendulum jigsaw with six speed settings, four-stage orbital action, dust extraction capability, and 100 mm wood-cutting capacity for demanding workshop and installation applications.
Category: Industrial Tools / Electric Power Tools / Jigsaws
Purpose: Designed for accurate straight, curved, pendulum, and bevel cutting in wood, steel, aluminium, plastics, panels, and other compatible materials.
⚙️ What It Is
The AEG STEP 100 is a professional corded top-handle jigsaw designed for woodworking, construction, renovation, furniture manufacturing, installation, maintenance, and general workshop cutting applications.
The machine is powered by a 700 W electric motor and provides a no-load stroke rate between 1,000 and 3,200 strokes per minute. Six selectable speed settings allow the operator to adapt the cutting speed to different materials and blade types, providing greater control when moving between timber, metal, aluminium, plastics, and other compatible materials.
The STEP 100 uses a 20 mm blade stroke and incorporates a four-stage pendulum-action system. The pendulum movement can be adjusted according to the required balance between cutting speed and surface quality. Lower settings are suitable for controlled and cleaner cuts, while higher orbital settings can increase cutting speed in suitable materials.
AEG specifies maximum cutting capacities of 100 mm in wood, 10 mm in steel, and 20 mm in aluminium. An integrated dust blower helps keep the marked cutting line visible, while the dust extraction connector allows the machine to be connected to suitable vacuum equipment for cleaner operation.
✅ Key Features
- Powerful 700 W electric motor
- 1,000–3,200 strokes per minute
- Six selectable speed settings
- 20 mm saw blade stroke
- Four pendulum-action settings
- Maximum 100 mm cutting depth in wood
- Maximum 10 mm cutting depth in steel
- Maximum 20 mm cutting depth in aluminium
- Bevel cutting up to 45°
- Integrated dust blower
- Dust extraction connection
- Ergonomic top-handle design
- Integrated Softgrip surfaces
- 4 m power cable
- Designed for professional workshop and installation use
🏭 Applications
The AEG STEP 100 is suitable for:
- Professional woodworking
- Carpentry
- Furniture manufacturing
- Cabinetmaking
- Interior installation
- Construction and renovation
- Cutting timber and wooden boards
- Cutting plywood and MDF
- Aluminium cutting
- Sheet steel cutting
- Plastic cutting
- Curved and contour cutting
- Bevel cutting
- Workshop fabrication
- Maintenance and repair work
The correct saw blade should always be selected according to the material, thickness, tooth geometry, and desired cutting quality.
🔧 Technical Specifications
Manufacturer: AEG Power Tools
Model: STEP 100
Article Number: 4935451001
EAN: 4002395136520
Product Type: Corded Pendulum Jigsaw
Rated Input Power: 700 W
No-Load Stroke Rate: 1,000–3,200 min⁻¹
Speed Settings: 6
Stroke Length: 20 mm
Pendulum Action: 4 settings
Maximum Cutting Depth – Wood: 100 mm
Maximum Cutting Depth – Steel: 10 mm
Maximum Cutting Depth – Aluminium: 20 mm
Maximum Bevel Angle: 45°
Weight: Approx. 2.2 kg
Cable Length: 4 m
Dust Extraction: Yes
Dust Blower: Yes
Supply Voltage: Refer to the regional product specification.
Protection Rating: Refer to the manufacturer’s datasheet.
Operating Temperature: Refer to AEG documentation.
Country of Manufacture: Refer to the product identification label.
🔄 Compatibility
The AEG STEP 100 is designed for compatible jigsaw blades selected according to the blade mounting interface, material, and required cutting performance.
Suitable applications include blades for:
- Softwood
- Hardwood
- Plywood
- MDF and laminated panels
- Aluminium
- Steel
- Plastics
- Other compatible sheet materials
Blade selection should consider workpiece thickness, tooth configuration, cutting speed, and required surface finish.
The integrated extraction connector can also be connected to suitable dust extraction equipment.
🛠 Installation & Maintenance
Disconnect the jigsaw from mains power before installing or replacing the blade.
Install a compatible saw blade and ensure that it is correctly secured before operation. Select the required speed setting and pendulum-action level according to the material.
For bevel cuts, adjust the base to the required angle up to 45° and securely lock it before starting work.
Keep the ventilation openings, blade holder, base plate, blower outlet, and dust extraction connection clean. Regularly inspect the power cable and saw blade condition.
⚠️ Safety & Precautions
- Disconnect mains power before replacing blades.
- Wear suitable eye and hearing protection.
- Secure the workpiece before cutting.
- Keep hands away from the moving blade.
- Use the correct blade for each material.
- Do not use bent or damaged saw blades.
- Inspect the power cable before operation.
- Use dust extraction where appropriate.
- Do not modify the tool or protective components.
- Follow applicable electrical and workplace safety regulations.
📦 Product Details
Form: Corded electric power tool
Manufacturer: AEG Power Tools
Product Type: Professional Pendulum Jigsaw
Model: STEP 100
Article Number: 4935451001
EAN: 4002395136520
Power: 700 W
Application: Wood, steel, aluminium, plastics, and compatible materials
Condition: Refer to product listing
Package Includes:
- AEG STEP 100 electric jigsaw
- 1 × saw blade
- Anti-splinter guard
- Dust protection cover
- 4 m power cable
Transport Case: Not included in the standard configuration.
Warranty: Refer to applicable AEG and InduParts.eu warranty terms.
