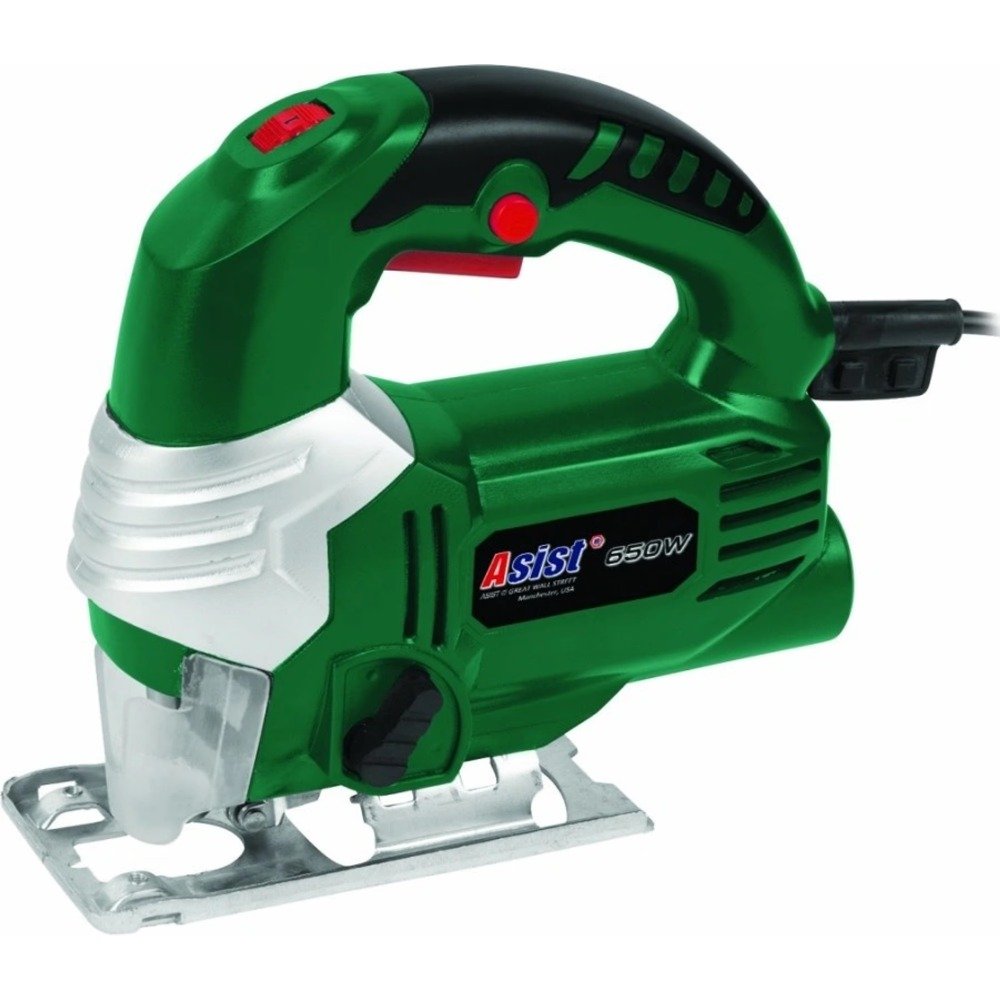

ASSIST AE5P65DN 650W Electric Jigsaw
Versatile 650 W corded pendulum jigsaw with electronic speed control, four-stage orbital action, quick blade changing, and adjustable bevel cutting for wood, steel, plastics, and general workshop applications.
Category: Industrial Tools / Electric Power Tools / Jigsaws
Purpose: Designed for straight, curved, pendulum, and bevel cutting in wood, steel, plastics, panels, and other compatible materials during workshop, installation, renovation, and maintenance work.
⚙️ What It Is
The ASSIST AE5P65DN is a corded electric jigsaw designed for woodworking, renovation, installation, repair, furniture assembly, and general workshop cutting.
The machine operates from a 230 V / 50 Hz mains supply and uses a 650 W electric motor. Electronic stroke-frequency adjustment provides a range of approximately 0–2,800 strokes per minute, allowing the cutting action to be adapted to different materials and blade types.
A four-position pendulum-action system allows the operator to adjust blade movement according to the workpiece and desired cutting result. Lower pendulum settings can provide greater control and a cleaner finish, while higher settings can increase cutting speed in suitable materials.
The AE5P65DN is specified for cutting wood up to 65 mm thick and steel up to 6 mm. Its metal base can be adjusted for bevel cutting within approximately ±45°, making the tool suitable for both standard vertical cuts and angled cutting applications.
A quick-release blade mechanism simplifies blade replacement, while the dust extraction outlet allows connection to suitable vacuum equipment. The machine also includes a parallel guide for controlled straight cutting.
✅ Key Features
- Powerful 650 W electric motor
- 230 V / 50 Hz mains operation
- Electronic stroke-speed control
- 0–2,800 strokes per minute
- Four pendulum-action settings
- Maximum 65 mm cutting depth in wood
- Maximum 6 mm cutting depth in steel
- Bevel cutting up to ±45°
- T-shank blade compatibility
- Quick-release blade mechanism
- Metal base plate
- Dust extraction capability
- Parallel guide included
- Soft-grip handle
- Suitable for wood, steel, and plastics
- Compact workshop design
🏭 Applications
The ASSIST AE5P65DN is suitable for:
- Woodworking
- Furniture assembly
- Cutting timber and wooden boards
- Cutting plywood and chipboard
- Interior installation
- Construction and renovation
- Plastic cutting
- Light steel cutting
- Straight cutting
- Curved and contour cutting
- Bevel cutting
- Workshop maintenance
- Repair applications
- General installation work
Always select the correct saw blade according to the workpiece material, thickness, and required cutting quality.
🔧 Technical Specifications
Manufacturer: ASSIST
Model: AE5P65DN
Product Type: Corded Pendulum Jigsaw
Rated Input Power: 650 W
Supply Voltage: 230 V
Frequency: 50 Hz
No-Load Stroke Rate: 0–2,800 min⁻¹
Pendulum Action: 4 settings
Maximum Cutting Depth – Wood: 65 mm
Maximum Cutting Depth – Steel: 6 mm
Bevel Range: Approximately ±45°
Blade Mounting: T-shank
Blade Change: Quick-release / SDS-style mechanism
Base Material: Metal
Dust Extraction: Yes
Variable Speed: Yes
Weight: Approx. 1.92 kg
Transport Case: No
Stroke Length: Refer to the manufacturer’s datasheet.
Protection Rating: Refer to the manufacturer’s documentation.
Operating Temperature: Refer to the manufacturer’s documentation.
🔄 Compatibility
The ASSIST AE5P65DN uses compatible T-shank jigsaw blades.
Suitable blades can be selected for:
- Wood
- Plywood
- Chipboard
- Plastics
- Steel
- Other compatible sheet materials
Blade selection should take into account the material, thickness, tooth configuration, and desired cutting finish.
The dust extraction outlet can also be connected to compatible workshop vacuum equipment using the supplied extraction adapter.
🛠 Installation & Maintenance
Disconnect the jigsaw from mains power before changing the blade, adjusting the base, or carrying out maintenance.
Insert a suitable T-shank blade into the quick-release holder and ensure that it is securely locked before operation.
Set the stroke speed and pendulum position according to the material being cut. For bevel cutting, adjust the base to the required angle within the permitted range and secure it before starting work.
Keep the blade holder, guide roller, ventilation openings, base plate, and extraction connection clean. Regularly inspect the power cable and blade condition.
⚠️ Safety & Precautions
- Disconnect mains power before changing blades.
- Wear suitable eye and hearing protection.
- Secure the workpiece before cutting.
- Keep hands away from the moving blade.
- Use the correct blade for each material.
- Do not use bent or damaged blades.
- Inspect the power cable before operation.
- Use dust extraction where appropriate.
- Do not operate the tool in wet conditions.
- Do not modify the tool or safety components.
- Follow applicable electrical safety regulations.
📦 Product Details
Form: Corded electric power tool
Manufacturer: ASSIST
Product Type: Pendulum Jigsaw
Model: AE5P65DN
Power: 650 W
Voltage: 230 V
Application: Wood, steel, plastics, panels, and compatible materials
Condition: Refer to product listing
Package Includes:
- ASSIST AE5P65DN electric jigsaw
- 1 × hex key
- 1 × wood-cutting saw blade
- 1 × parallel guide
- 1 × dust extraction adapter
Transport Case: Not included.
Warranty: ASIST currently lists a 3-year warranty for this model; applicable InduParts.eu and regional conditions should be checked at purchase.
