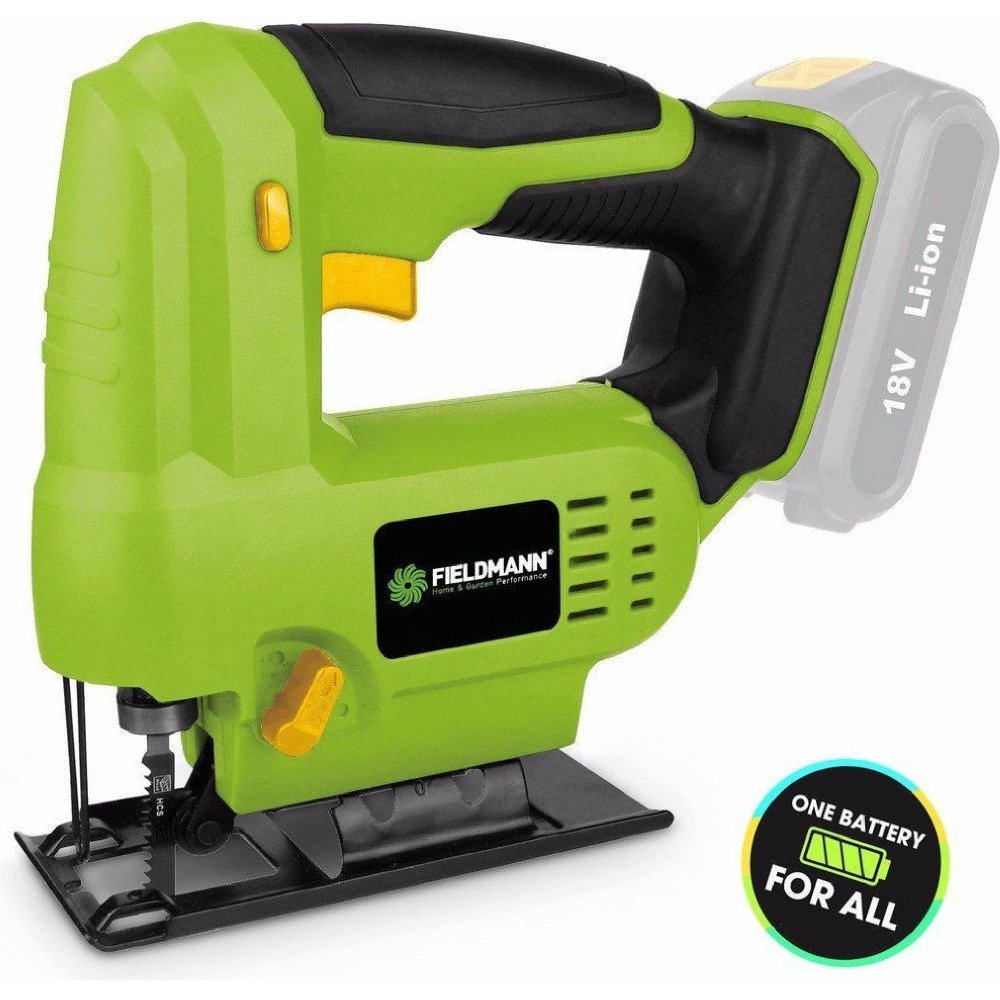

FIELDMANN FDUP 50401 18V Cordless Jigsaw
Compact 18 V cordless jigsaw with pendulum-action adjustment and bevel-cutting capability for mobile cutting tasks in wood, steel, panels, and compatible construction materials.
Category: Industrial Tools / Cordless Power Tools / Jigsaws
Purpose: Designed for straight, curved, and angled cutting during woodworking, maintenance, renovation, installation, and general workshop applications.
⚙️ What It Is
The FIELDMANN FDUP 50401 is an 18 V cordless jigsaw designed for portable cutting applications where freedom from mains power is important. It is suitable for workshop tasks, installation work, repairs, woodworking, and general maintenance.
The tool operates at approximately 2,400 strokes per minute and is designed to cut wood to a maximum specified depth of 51 mm and steel to approximately 4 mm, depending on the installed blade and working conditions.
The FDUP 50401 incorporates a four-position pendulum action system, with settings 0, I, II, and III. This allows the user to adapt blade movement according to the material and desired cutting speed or finish. Lower settings can be used where a cleaner cut is required, while higher pendulum settings may improve cutting speed in suitable materials.
The base plate can also be adjusted for bevel cuts between 0° and 45°, expanding the tool’s use beyond standard vertical cutting. The operating instructions specifically describe base positioning for 15°, 30°, and 45° angled cutting.
✅ Key Features
- 18 V cordless operation
- Compact jigsaw design
- Approx. 2,400 strokes per minute
- Maximum 51 mm cutting depth in wood
- Maximum 4 mm cutting depth in steel
- Four pendulum-action positions
- Adjustable cutting angle up to 45°
- Suitable for straight and curved cutting
- Portable design for mobile work
- Suitable for workshop and installation applications
- Compatible with appropriate wood and metal jigsaw blades
🏭 Applications
The FIELDMANN FDUP 50401 is suitable for:
- Woodworking
- Workshop maintenance
- Interior installation
- Construction and renovation
- Cutting wooden panels
- Cutting boards and sheet materials
- Light steel cutting
- Furniture assembly
- Electrical installation
- General repair work
- Curved cutting
- Bevel cutting
- On-site maintenance
- General workshop applications
The correct saw blade should always be selected according to the workpiece material and required cutting quality.
🔧 Technical Specifications
Manufacturer: FIELDMANN
Model: FDUP 50401
Product Type: Cordless Jigsaw
Nominal Voltage: 18 V DC
Speed: 2,400 strokes/min
Maximum Cutting Depth – Wood: 51 mm
Maximum Cutting Depth – Steel: 4 mm
Pendulum Positions: 0 / I / II / III
Bevel Cutting Range: 0°–45°
Sound Pressure Level: 76.4 dB(A), K = 3 dB(A)
Sound Power Level: 87.4 dB(A), K = 3 dB(A)
Vibration Level: ahB = 8.432 m/s², K = 1.5 m/s²
Stroke Length: Refer to the manufacturer’s datasheet.
Battery Capacity: Refer to the specific product package.
Battery Type: Refer to the manufacturer’s documentation.
Weight: Refer to the manufacturer’s datasheet.
Protection Rating: Refer to the manufacturer’s documentation.
Country of Manufacture: Refer to the product label.
🔄 Compatibility
The FIELDMANN FDUP 50401 operates from an 18 V DC battery system.
Battery and charger compatibility should be verified using the exact FIELDMANN model and manufacturer documentation before purchase.
The jigsaw should be used with compatible saw blades selected according to:
- Blade mounting type
- Material being cut
- Required cutting depth
- Tooth geometry
- Desired cutting quality
For replacement batteries, chargers, blades, or other accessories, verify compatibility specifically with model FDUP 50401.
🛠 Installation & Maintenance
Install an appropriate jigsaw blade and ensure that it is correctly secured before starting work.
Select the pendulum-action position according to the material and cutting requirements. For angled cuts, loosen the base adjustment, set the required angle, and securely tighten the base before operation.
Keep the blade holder, base plate, ventilation openings, and battery contacts clean. Remove accumulated sawdust and metal particles after use.
Remove the battery before replacing blades, adjusting the base, cleaning, or servicing the tool.
⚠️ Safety & Precautions
- Remove the battery before changing saw blades.
- Wear suitable eye and hearing protection.
- Secure the workpiece before cutting.
- Keep hands away from the moving blade.
- Use the correct blade for the material.
- Do not use bent or damaged blades.
- Do not modify the tool.
- Do not overload the jigsaw during cutting.
- Allow the tool to cool if excessive heating occurs.
- Store the tool and battery in a clean, dry environment.
- Follow the FIELDMANN operating instructions.
📦 Product Details
Form: Cordless power tool
Manufacturer: FIELDMANN
Product Type: Cordless Jigsaw
Model: FDUP 50401
Voltage: 18 V DC
Speed: 2,400 strokes/min
Application: Wood, steel, and compatible sheet materials
Condition: Refer to product listing
Battery: Refer to the specific product package
Charger: Refer to the specific product package
Package Includes: Refer to the seller’s package configuration
Warranty: Refer to applicable FIELDMANN and InduParts.eu warranty terms.
🛒 Buy FIELDMANN FDUP 50401
Order the FIELDMANN FDUP 50401 18V Cordless Jigsaw from InduParts.eu for genuine professional tools and industrial equipment, fast shipping, and professional service.
