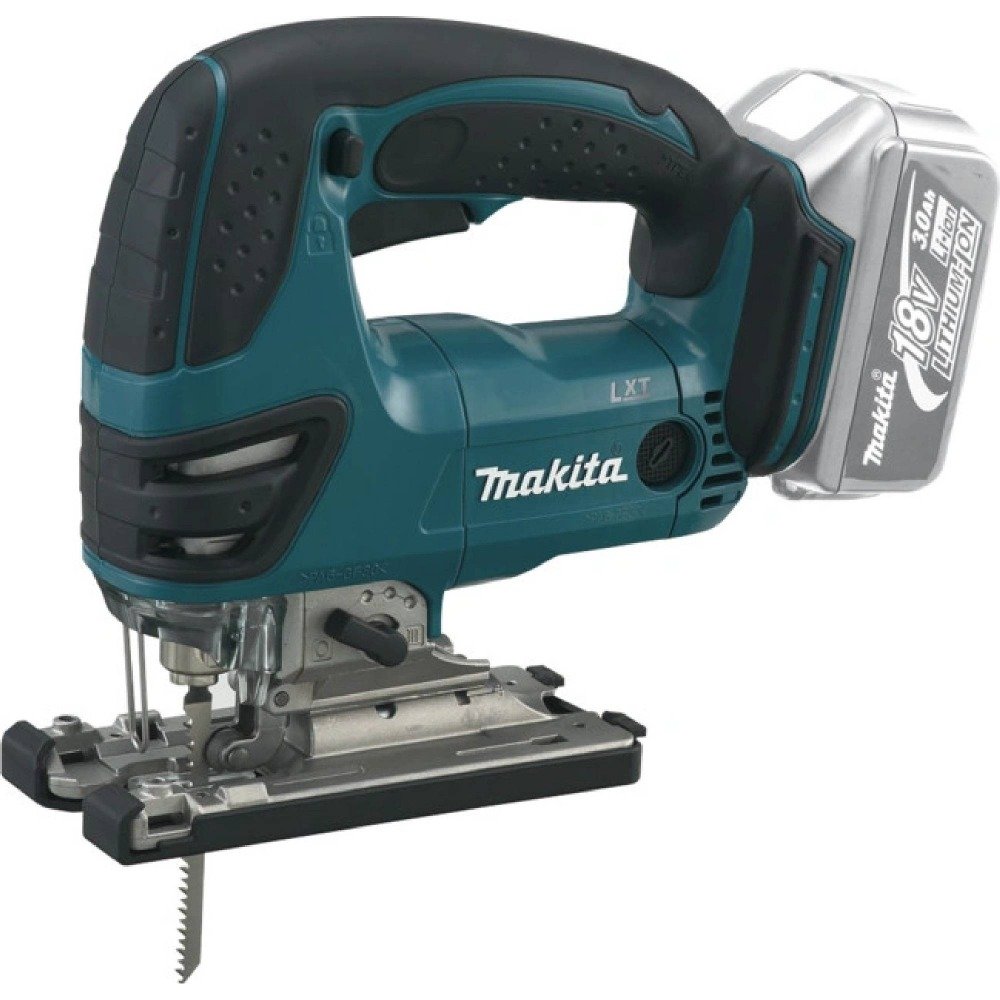

MAKITA DJV180Z 18V LXT Cordless Jigsaw – Without Battery
Reliable 18 V cordless jigsaw with variable speed control, three-stage orbital action, and tool-free blade change for accurate professional cutting.
Category: Industrial Tools / Cordless Power Tools / Jigsaws
Purpose: Designed for straight, curved, orbital, and bevel cutting in wood, steel, aluminium, plastics, panels, and other compatible construction and workshop materials.
⚙️ What It Is
The MAKITA DJV180Z is a professional cordless D-handle jigsaw from the Makita 18 V LXT platform. It is designed for tradespeople, maintenance technicians, installers, workshops, and construction professionals who require a portable cutting tool without dependence on mains power.
The jigsaw provides a variable stroke rate of 0–2,600 strokes per minute controlled through the trigger. Its 26 mm stroke length and three orbital-action settings allow the operator to adjust the cutting action according to the material and required finish. A straight-cutting mode is also available.
The DJV180Z uses a tool-free blade-change mechanism for quick replacement of compatible jigsaw blades. An integrated blower helps clear sawdust from the cutting line, while the built-in work light improves visibility in poorly illuminated areas. The base can be adjusted up to 45° left or right for bevel cutting.
This DJV180Z version is supplied as a bare tool, making it suitable for users who already operate Makita LXT equipment and have compatible 18 V batteries and chargers.
✅ Key Features
- Professional Makita 18 V LXT cordless jigsaw
- D-handle design
- Variable speed trigger
- 0–2,600 strokes per minute
- 26 mm stroke length
- Three orbital cutting settings
- Straight cutting mode
- Tool-free blade changing system
- Integrated cutting-line blower
- Built-in work light
- Bevel cutting up to 45° left and right
- Electronic brake
- Compatible with Makita 18 V LXT battery system
- Battery protection system
- Suitable for professional workshop and installation use
- Supplied without battery and charger
🏭 Applications
The MAKITA DJV180Z is suitable for applications including:
- Industrial maintenance
- Workshop fabrication
- Construction
- Woodworking
- Interior installation
- Furniture manufacturing
- Cutting wooden boards and panels
- Cutting aluminium
- Cutting mild steel
- Electrical installation work
- Mechanical servicing
- Machine installation
- Bevel cutting
- Curved cutting
- On-site repair work
Always select a suitable blade according to the material, thickness, and required cutting finish.
🔧 Technical Specifications
Manufacturer: Makita
Model: DJV180Z
Series: LXT
Product Type: Cordless D-Handle Jigsaw
Voltage: 18 V
Battery Platform: Makita LXT
Motor Type: Brushed motor
Strokes Per Minute: 0–2,600 spm
Stroke Length: 26 mm
Orbital Settings: 3 + straight cutting
Maximum Cutting Capacity – Wood: 135 mm
Maximum Cutting Capacity – Steel: 10 mm
Maximum Cutting Capacity – Aluminium: 20 mm
Bevel Capacity: 45° left / 45° right
Overall Length: Approx. 257 mm
Tool Weight Without Battery: Approx. 2.2 kg
Maximum Power Output: 340 W
Blade Change: Tool-free
Work Light: Yes
Blower Function: Yes
Electronic Brake: Yes
Protection Rating: Refer to the manufacturer’s datasheet.
Operating Temperature: Refer to the manufacturer’s documentation.
Country of Manufacture: Refer to the product label.
🔄 Compatibility
The MAKITA DJV180Z is designed for the Makita 18 V LXT battery platform. It can therefore be integrated into an existing Makita LXT tool system using compatible Makita batteries and chargers.
Blade compatibility should be checked according to the required shank type, material, thickness, and Makita recommendations.
Before purchasing replacement batteries, chargers, blades, dust extraction components, or other accessories, verify compatibility with model DJV180Z.
🛠 Installation & Maintenance
Install a suitable jigsaw blade using the tool-free blade-change mechanism and confirm that the blade is securely locked before operation.
Adjust the orbital action and speed according to the material. For bevel cutting, correctly set and secure the base before starting the cut.
Keep the blade holder, ventilation openings, base plate, and blower area clean. Remove the battery before replacing blades, adjusting the machine, cleaning, or performing maintenance.
Periodic inspection of the blade holder, base, battery contacts, and carbon brushes is recommended for professional use.
⚠️ Safety & Precautions
- Remove the battery before changing blades or performing maintenance.
- Wear suitable eye and hearing protection.
- Secure the workpiece before cutting.
- Keep hands away from the blade.
- Use the correct blade for the material.
- Inspect blades before use.
- Do not use damaged batteries or accessories.
- Do not modify the tool.
- Follow local workplace safety regulations.
- Store the tool in a clean and dry environment.
- Repairs should be performed by qualified personnel.
📦 Product Details
Form: Cordless power tool / bare tool
Manufacturer: Makita
Product Type: Cordless Jigsaw
Model: DJV180Z
Series: LXT
Voltage: 18 V
Condition: Refer to product listing
Application: Professional cutting, installation, fabrication, and maintenance
Standard Accessories: Blade set, cover plate, anti-splintering device, and hex wrench.
Battery: Not included
Charger: Not included
Transport Case: Not included
Warranty: Refer to applicable Makita and InduParts.eu warranty terms.
