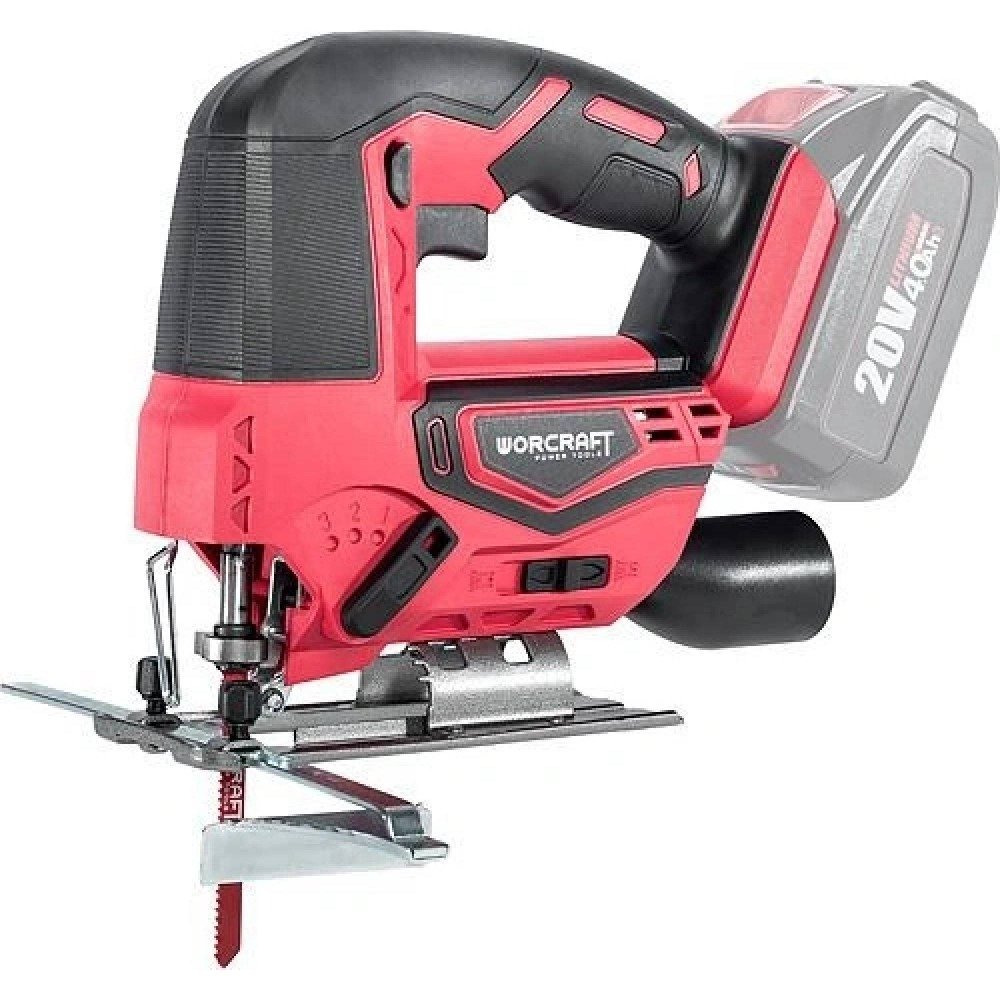

WORCRAFT CJS-S20Li 20V Cordless Jigsaw
Compact 20 V cordless jigsaw with variable speed, four-stage pendulum action, LED illumination, dust extraction capability, and adjustable bevel cutting for versatile workshop and installation applications.
Category: Industrial Tools / Cordless Power Tools / Jigsaws
Purpose: Designed for straight, curved, orbital, and bevel cutting in wood, furniture boards, plastics, steel, non-ferrous metals, and other compatible materials.
⚙️ What It Is
The WORCRAFT CJS-S20Li is a cordless jigsaw powered by the WORCRAFT 20 V lithium-ion battery platform. It is designed for mobile cutting tasks in workshops, renovation, furniture assembly, installation work, woodworking, and general maintenance applications.
The machine provides a variable stroke rate from 0 to 2,500 strokes per minute, controlled through the operating switch. It is specified for a maximum cutting depth of 80 mm in wood and 6 mm in metal, depending on the installed blade and operating conditions.
The CJS-S20Li incorporates a four-stage pendulum-action system, allowing the blade movement to be adapted according to material and required cutting quality. This makes it possible to select a cleaner cutting action for precision work or a more aggressive orbital movement for faster cutting in suitable materials.
The tool also features an integrated LED work light, quick-release blade holder, cutting-line blower, and vacuum extraction adapter. The operator can switch between blowing dust away from the cutting line and extracting it through a connected vacuum cleaner.
✅ Key Features
- 20 V cordless operation
- Variable speed control
- 0–2,500 strokes per minute
- Four-stage pendulum action
- Up to 80 mm cutting depth in wood
- Up to 6 mm cutting depth in metal
- Adjustable bevel cutting up to 45° left and right
- Quick-release blade holder
- Integrated LED work light
- Cutting-line dust blower
- Vacuum cleaner connection
- Continuous-operation lock
- Parallel guide compatibility
- Compact cordless construction
- Compatible with WORCRAFT 20 V battery system
- Battery and charger sold separately
🏭 Applications
The WORCRAFT CJS-S20Li is suitable for:
- Woodworking
- Furniture assembly
- Cutting chipboard and furniture panels
- Cutting plywood
- Interior installation
- Construction and renovation
- Cutting plastics
- Steel sheet cutting
- Non-ferrous metal cutting
- Curved cutting
- Straight cutting
- Bevel cutting
- Workshop maintenance
- General repair work
- On-site installation tasks
WORCRAFT specifies the tool for timber, wood-based construction and furniture panels, steel sections, non-ferrous metals, plastics, and other suitable materials excluding asbestos-containing materials.
🔧 Technical Specifications
Manufacturer: WORCRAFT
Model: CJS-S20Li
Product Type: Cordless Jigsaw
Rated Voltage: 20 V
Battery Technology: Lithium-Ion
Recommended Battery: CLB-20V-2.0 / CLB-20V-4.0
Recommended Charger: CLC-20V-2.4
Stroke Rate: 0–2,500 strokes/min
Stroke Length: Approx. 26 mm
Pendulum Action: 4 stages
Maximum Cutting Depth – Wood: 80 mm
Maximum Cutting Depth – Metal: 6 mm
Bevel Cutting Range: 0–45° left / right
LED Work Light: Yes
Dust Blower: Yes
Dust Extraction Connection: Yes
Blade Change: Quick-release
Net Weight: Approx. 1.7 kg
Gross Weight: Approx. 1.9 kg
Sound Pressure Level: 83.8 dB(A)
Sound Power Level: 94.7 dB(A)
Protection Rating: Refer to the manufacturer’s datasheet.
Dimensions: Refer to the manufacturer’s documentation.
Country of Manufacture: Refer to the product identification label.
🔄 Compatibility
The WORCRAFT CJS-S20Li is designed for the manufacturer’s 20 V cordless platform.
Recommended battery packs listed in the technical manual are:
- WORCRAFT CLB-20V-2.0
- WORCRAFT CLB-20V-4.0
The recommended charger is CLC-20V-2.4.
Saw blades should be selected according to the workpiece material, blade mounting system, required cutting depth, and tooth geometry.
🛠 Installation & Maintenance
Remove the battery before installing or replacing the saw blade.
Insert the compatible blade into the quick-release holder until it is fully engaged and correctly positioned in the guide roller.
Select the appropriate pendulum setting and cutting speed according to the material. For bevel cutting, adjust the support base to the required angle and secure it before operation.
Keep the blade holder, ventilation openings, base plate, LED area, blower, and dust extraction connection clean. WORCRAFT recommends regular cleaning of the ventilation openings and periodic inspection of the tool.
⚠️ Safety & Precautions
- Remove the battery before blade replacement or maintenance.
- Wear suitable eye protection.
- Secure the workpiece before cutting.
- Keep hands away from the moving blade.
- Use a blade suitable for the material.
- Do not use damaged or blunt blades.
- Do not overload the jigsaw.
- Do not operate the tool in rain or wet conditions.
- Use dust extraction where appropriate.
- Do not modify the tool.
- Store the machine and battery in a dry environment.
📦 Product Details
Form: Cordless power tool
Manufacturer: WORCRAFT
Product Type: Cordless Jigsaw
Model: CJS-S20Li
Voltage: 20 V
Application: Wood, steel, non-ferrous metals, plastics, and compatible sheet materials
Condition: Refer to product listing
Standard Package Includes:
- WORCRAFT CJS-S20Li cordless jigsaw
- 1 × saw blade
- 1 × hex key
- 1 × parallel guide
- Operating instructions
- Warranty documentation
- Packaging box
Battery: Not included
Charger: Not included
Warranty: Refer to applicable WORCRAFT and InduParts.eu warranty terms.
