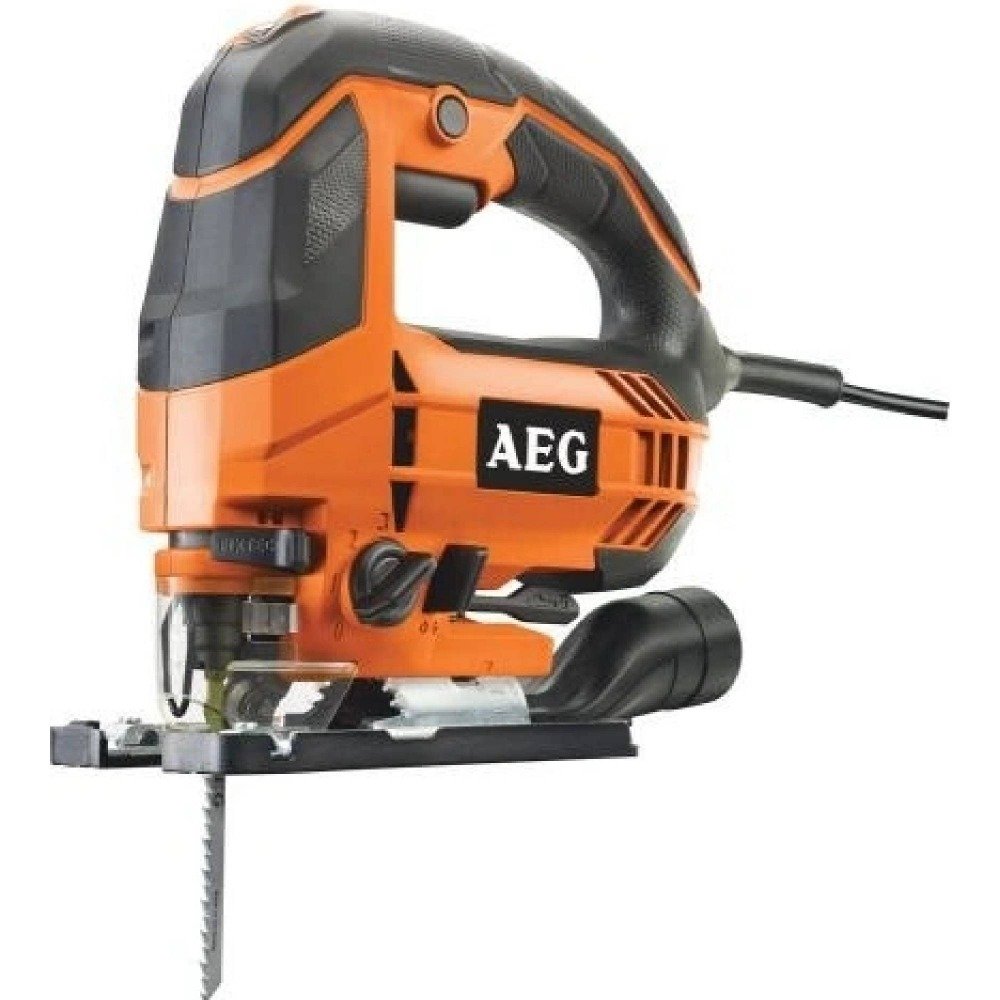

AEG STEP 80 4935451161 700W Electric Jigsaw

Professional 700 W corded top-handle jigsaw with six speed settings, four-stage pendulum action, dust extraction capability, and 80 mm wood-cutting capacity for workshop and installation applications.

Category: Industrial Tools / Electric Power Tools / Jigsaws

Purpose: Designed for straight, curved, pendulum, and bevel cutting in wood, steel, aluminium, plastics, panels, and other compatible materials.

⚙️ What It Is

The AEG STEP 80 is a corded top-handle jigsaw designed for woodworking, installation, renovation, fabrication, maintenance, and general professional cutting applications.

The machine is powered by a 700 W electric motor and provides a no-load stroke rate of 1,000–3,200 strokes per minute. Six speed settings allow the operator to adapt blade speed to different workpiece materials and cutting conditions.

A 20 mm stroke length and four-stage pendulum-action system provide flexibility between controlled precision cutting and faster material removal. AEG specifies maximum cutting capacities of 80 mm in wood, 10 mm in steel, and 20 mm in aluminium.

The STEP 80 features an ergonomic top-handle design with integrated Softgrip surfaces for improved handling. A built-in dust blower helps keep the cutting line visible, while the dust extraction connection allows the tool to be connected to suitable extraction equipment.

✅ Key Features

• Powerful 700 W electric motor
• 1,000–3,200 strokes per minute
• Six selectable speed settings
• 20 mm blade stroke
• Four pendulum-action settings
• Maximum 80 mm cutting capacity in wood
• Maximum 10 mm cutting capacity in steel
• Maximum 20 mm cutting capacity in aluminium
• Bevel cutting up to 45°
• Integrated Softgrip handle
• Dust extraction connection
• Cutting-line dust blower
• 4 m power cable
• Ergonomic top-handle design
• Suitable for professional workshop use

🏭 Applications

The AEG STEP 80 is suitable for:

• Woodworking
• Carpentry
• Furniture assembly
• Interior installation
• Construction and renovation
• Cutting timber and wooden panels
• Cutting plywood and MDF
• Aluminium cutting
• Steel cutting
• Plastic cutting
• Curved and contour cutting
• Bevel cutting
• Workshop fabrication
• Maintenance and repair
• General installation work

Always select the correct blade according to material, thickness, tooth geometry, and required finish.

🔧 Technical Specifications

Manufacturer: AEG Power Tools
Model: STEP 80
Article Number: 4935451161
EAN: 4002395138302
Product Type: Corded Top-Handle Jigsaw
Rated Input Power: 700 W
No-Load Stroke Rate: 1,000–3,200 strokes/min
Speed Settings: 6
Stroke Length: 20 mm
Pendulum Settings: 4
Maximum Cutting Depth – Wood: 80 mm
Maximum Cutting Depth – Steel: 10 mm
Maximum Cutting Depth – Aluminium: 20 mm
Maximum Bevel Angle: 45°
Weight: Approx. 2.2 kg
Cable Length: 4 m
Dust Extraction: Yes
Dust Blower: Yes
Supplied In: Cardboard box

Supply Voltage: Refer to the regional product specification.
Protection Rating: Refer to the manufacturer’s datasheet.
Operating Temperature: Refer to AEG documentation.
Country of Manufacture: Refer to the product identification label.

🔄 Compatibility

The AEG STEP 80 is designed to operate with compatible jigsaw blades selected according to the blade mounting interface and material being processed.

Suitable blade applications include:

• Softwood
• Hardwood
• Plywood
• Laminated panels
• Aluminium
• Steel
• Plastics
• Other compatible sheet materials

Blade selection should consider material thickness, tooth configuration, cutting speed, and required surface quality.

A compatible vacuum or dust extractor can also be connected to the extraction port for cleaner operation.

🛠 Installation & Maintenance

Disconnect the jigsaw from mains power before installing or replacing the blade.

Install the appropriate saw blade and verify that it is securely seated before operation. Select one of the six speed settings and the appropriate pendulum-action level according to the material.

For bevel cutting, adjust the base to the required angle up to 45° and securely lock it before starting work.

Keep the ventilation openings, blade holder, base, blower outlet, and dust extraction port clean. Regularly inspect the power cable and blade condition.

⚠️ Safety & Precautions

• Disconnect mains power before changing blades.
• Wear suitable eye and hearing protection.
• Secure the workpiece before cutting.
• Keep hands away from the moving blade.
• Select a suitable blade for the material.
• Do not use bent or damaged blades.
• Inspect the mains cable before operation.
• Use dust extraction where appropriate.
• Do not modify the tool or protective components.
• Follow applicable electrical and workplace safety regulations.

📦 Product Details

Form: Corded electric power tool
Manufacturer: AEG Power Tools
Product Type: Top-Handle Jigsaw
Model: STEP 80
Article Number: 4935451161
EAN: 4002395138302
Power: 700 W
Application: Wood, steel, aluminium, plastics, and compatible materials
Condition: Refer to product listing

Package Includes:

• AEG STEP 80 electric jigsaw
• 1 × saw blade
• Anti-splinter guard
• Dust protection cover
• 4 m power cable

Transport Case: Not included in the standard configuration.
Warranty: Refer to applicable AEG and InduParts.eu warranty terms.
