Einhell Classic TC-JS 80/1 550W Electric Jigsaw
Versatile 550 W corded pendulum jigsaw with electronic speed control, four-stage pendulum action, tool-free blade changing, and 80 mm wood-cutting capacity for workshop, renovation, and installation applications.
Category: Industrial Tools / Electric Power Tools / Jigsaws
Purpose: Designed for straight, curved, pendulum, and bevel cutting in wood, plastics, steel, boards, panels, and other compatible materials.
⚙️ What It Is

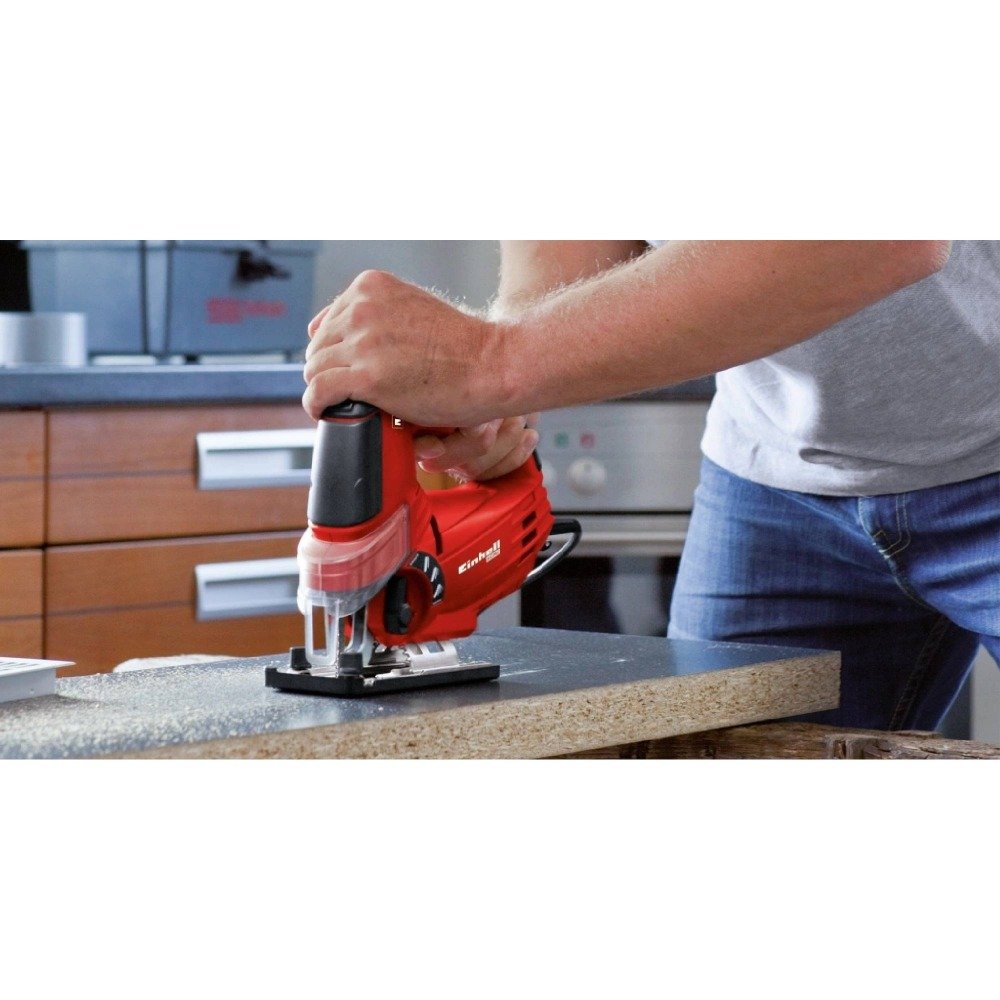

The Einhell Classic TC-JS 80/1 is a compact corded electric jigsaw designed for woodworking, renovation, maintenance, installation, and general workshop applications.
Its 550 W electric motor provides sufficient cutting performance for a wide range of materials, including wood, plastic, and steel. Electronic speed control allows the cutting rate to be adapted to the workpiece and blade being used, helping provide more controlled cutting across different materials.
The TC-JS 80/1 features a four-stage pendulum action system. This allows the operator to select the required blade movement depending on whether the priority is a cleaner cut or faster material removal. The saw reaches up to 3,000 strokes per minute and is designed for maximum cutting depths of 80 mm in wood, 20 mm in plastic, and 10 mm in steel.
The tool also features a tool-free blade changing system, an adjustable soleplate for bevel cuts up to 45°, dust extraction capability, and large Softgrip surfaces for improved handling during longer cutting operations.
✅ Key Features
- 550 W electric motor
- Electronic speed control
- Up to 3,000 strokes per minute
- Four-stage pendulum action
- Tool-free saw blade changing
- T-shank blade holder
- Maximum 80 mm cutting depth in wood
- Maximum 20 mm cutting depth in plastic
- Maximum 10 mm cutting depth in steel
- Bevel cutting up to 45°
- Dust extraction connection
- Large Softgrip surfaces
- Compact corded design
- Suitable for workshop and installation applications
🏭 Applications
The Einhell Classic TC-JS 80/1 is suitable for:
- Woodworking
- Cutting wooden boards and panels
- Cutting plywood and MDF
- Plastic cutting
- Light steel cutting
- Furniture assembly
- Interior installation
- Construction and renovation
- Curved cutting
- Pendulum cutting
- Bevel cutting
- Workshop maintenance
- Repair work
- General fabrication
The correct saw blade should always be selected according to the material, thickness, and required cutting quality.
🔧 Technical Specifications
Manufacturer: Einhell Germany AG
Model: TC-JS 80/1
Series: Classic
Article Number: 4321145
EAN: 4006825619737
Product Type: Corded Pendulum Jigsaw
Rated Power: 550 W
Power Source: Mains powered
Maximum No-Load Speed: 3,000 min⁻¹
Stroke / Lift Height: 20–22 mm depending on regional official specification
Pendulum Action: 4 settings
Maximum Cutting Depth – Wood: 80 mm
Maximum Cutting Depth – Plastic: 20 mm
Maximum Cutting Depth – Steel: 10 mm
Bevel Range: 0–45°
Blade Holder: T-shank
Blade Change: Tool-free
Dust Extraction Connection: 36 mm
Product Weight: Approx. 1.75–1.86 kg depending on regional specification
Protection Rating: Refer to the manufacturer’s datasheet.
Operating Temperature: Refer to Einhell documentation.
Country of Manufacture: Refer to the product identification label.
🔄 Compatibility
The Einhell TC-JS 80/1 uses standard T-shank jigsaw blades, allowing compatible blades to be selected for different cutting applications.
Suitable blades may be used for:
- Wood
- Plywood
- Laminated boards
- Plastics
- Steel
- Other compatible sheet materials
Blade selection should consider workpiece thickness, tooth geometry, cutting speed, and required finish.
The 36 mm dust extraction connection can also be connected to suitable extraction equipment.
🛠 Installation & Maintenance
Disconnect the jigsaw from the mains supply before changing the blade or adjusting the soleplate.
Insert the required T-shank blade into the tool-free blade holder and verify that it is correctly secured before operation.
Select the appropriate electronic speed and pendulum-action setting according to the material. For bevel cuts, adjust the soleplate to the required angle within the 0–45° range and securely lock it.
Keep the ventilation openings, blade holder, soleplate, and dust extraction connection clean. Inspect the mains cable and saw blade regularly.
⚠️ Safety & Precautions
- Disconnect mains power before changing blades.
- Wear suitable eye and hearing protection.
- Secure the workpiece before cutting.
- Keep hands away from the moving blade.
- Use the correct blade for each material.
- Do not use bent or damaged blades.
- Inspect the electrical cable before operation.
- Use dust extraction where appropriate.
- Do not modify the tool or protective components.
- Follow applicable electrical and workplace safety regulations.
📦 Product Details
Form: Corded electric power tool
Manufacturer: Einhell
Product Type: Pendulum Jigsaw
Model: TC-JS 80/1
Series: Classic
Article Number: 4321145
EAN: 4006825619737
Power: 550 W
Application: Wood, plastic, steel, and compatible materials
Condition: Refer to product listing
Package Includes: Einhell TC-JS 80/1 electric jigsaw and manufacturer-supplied accessories according to regional package configuration.
Transport Case: Not included in the standard TC-JS 80/1 configuration.
Warranty: Refer to applicable Einhell and InduParts.eu warranty terms.
🛒 Buy Einhell Classic TC-JS 80/1
Order the Einhell Classic TC-JS 80/1 550W Electric Jigsaw from InduParts.eu for genuine professional tools, fast shipping, and professional service.
