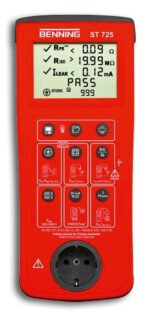

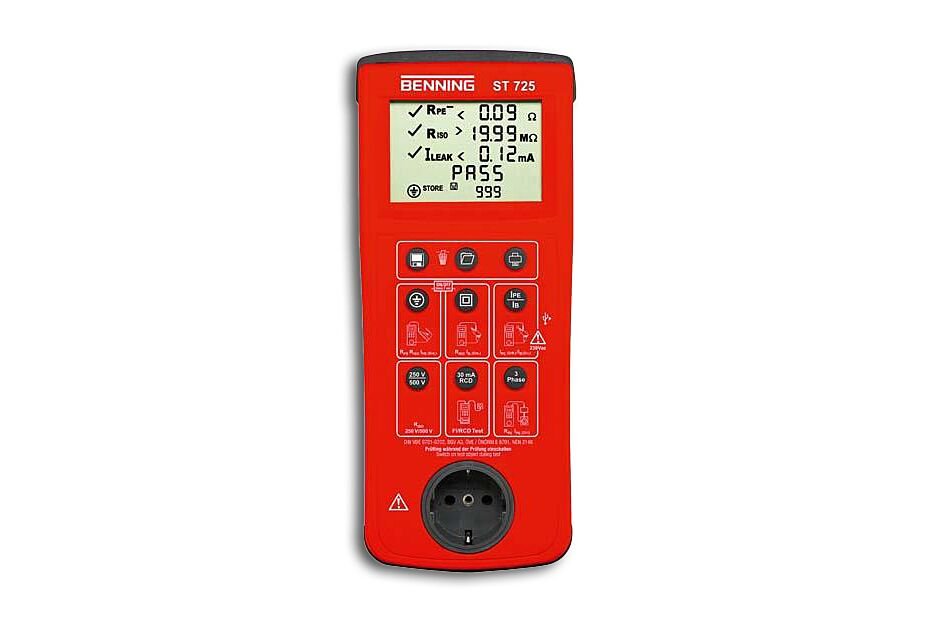

BENNING appliance tester ST725 is available in the Induparts product catalogue. This listing identifies the exact model variant and brings together its technical specifications and package information so you can compare the product with your purchasing requirements.
Model and configuration
The complete product name identifies the configuration offered in this listing. Read every suffix and the package wording carefully when comparing similar products. A tool supplied without batteries or a charger is a different package from a kit that includes those accessories. The specification table below records the details provided for this particular entry.
Technical specifications
| Manufacturer | BENNING |
|---|---|
| catalogue article nr. | 55610725 |
| Display | LCD |
| Weight | 950 g |
| Application | Sicherheitstechnische Prüfung von Geräten/Arbeitsmitteln, wie z. B. Elektrowerkzeuge, Motorgeräte, Leuchten, Verlängerungsleitungen, Haushaltsgeräte gemäß VDE 0701-0702, DGVU Vorschrift 3, ÖVE/ÖNORM E 8701, NEN 3140 |
| Protection class | IP 40 |
| Battery type | Mignon |
| SB Packed | No |
| Total length | 270 mm |
| Interface | Micro USB |
| Battery count | 6 |
| Prüfstrom ( | ± 200 mA DC |
| Housing material | Plastic |
| Leitungstest RPE | Ja |
| Measured value memory | 999 |
| Line test RISO | Ja |
| Nominal battery voltage | 1.5 V |
| Batterie-Typ nach IEC | LR6 |
| Battery type according to ANSI | AA |
| Isolationswiderstand max. | 20 MOhm kO |
| Isolationswiderstand min. | 0,1 MOhm kO |
| Falls under electrical law | Ja |
| Falls under battery law | Ja |
| Schutzleiterwiderstand max. | 20 Ohm O |
| Schutzleiterwiderstand min. | ,05 Ohm O |
| Prüfspannung (Gleichstrom) max. | 500 V V |
| Prüfspannung (Gleichstrom) min. | 250 V V |
| Continuity test (phase conductor) | Ja |
| Continuity test (neutral conductor) | Ja |
| Short circuit test (phase conductor) | Ja |
| Short circuit test (neutral conductor) | Ja |
| Schutzleiter-/Berührungsstrom über direkte Messung max. | 2 mA mA |
| Schutzleiter-/Berührungsstrom über direkte Messung min. | ,1 mA mA |
| Schutzleiter-/Berührungsstrom über Differenzverfahren max. | 20 mA mA |
| Schutzleiter-/Berührungsstrom über Differenzverfahren min. | ,25 mA mA |
| Schutzleiter-/Berührungsstrom über Ersatzableitstromverfahren max. | 20 mA mA |
| Schutzleiter-/Berührungsstrom über Ersatzableitstromverfahren min. | ,1 mA mA |
Package contents and accessories
Use the stated package information to check which accessories are included. The product name and specification table should be read together when checking the supplied configuration. Do not assume that accessories shown alongside a tool are included unless the listing expressly identifies them as part of the package. If you need a particular accessory, ask about that item separately before ordering.
Choosing the correct variant
Compare the listed model with your equipment documentation and the requirements of the intended application. Where voltage, speed, torque or dimensions are specified, keep their units and any stated conditions together when making a comparison. Different settings or configurations can have different values; an isolated number may not describe the complete product. Consult the manufacturer documentation for operating and installation requirements.
Before ordering
Check the full model designation, package contents and technical details before placing an order. Similar names do not establish that two products are interchangeable. Keep any unclear specification as an open question rather than inferring it from another model. For a product enquiry, include the complete listing title and identify the particular detail that you need confirmed. This helps distinguish questions about the model, included accessories and the configuration shown on this page.
