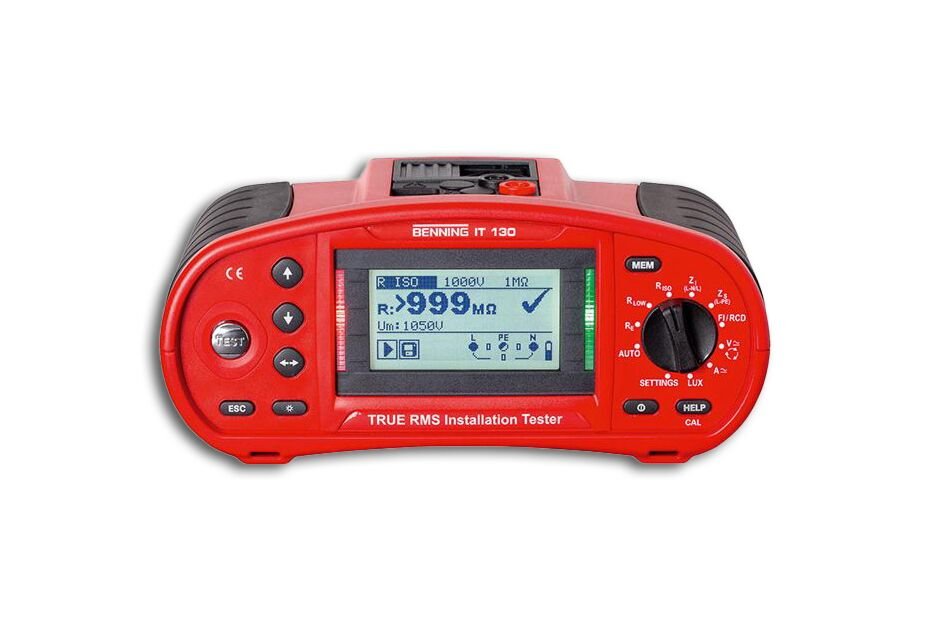

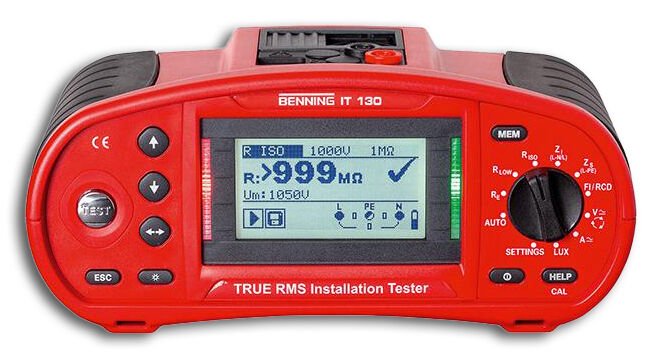

BENNING Installation tester IT 130 is available in the Induparts product catalogue. This listing identifies the exact model variant and brings together its technical specifications and package information so you can compare the product with your purchasing requirements.
Model and configuration
The complete product name identifies the configuration offered in this listing. Read every suffix and the package wording carefully when comparing similar products. A tool supplied without batteries or a charger is a different package from a kit that includes those accessories. The specification table below records the details provided for this particular entry.
Technical specifications
| Manufacturer | BENNING |
|---|---|
| catalogue article nr. | 55860130 |
| Display | LCD |
| Weight | 1170 g |
| Application | Testing of electrical installations according to DIN VDE 0100-600 and DIN VDE 0105-100, incl. RCD circuit breaker standard and delayed (S) (type AC, A, F, B, B+ with AUTO test) |
| Battery type | NiMH Mignon battery |
| Real-time clock | Date/time stamp |
| SB Packed | No |
| Scope of delivery | Installation tester, carrying case, PC software, USB/RS-232 cable, switchable Commander test probe, test cable with safety plug, universal 3-wire test lead 1.5 m, 3 x test probes/crocodile clips, charger with 6 NiMH AA batteries |
| Measurement category | CAT IV 300 V |
| Measurement method | TRUE RMS |
| Interface | USB, RS 232 |
| Battery count | 6 |
| Measured value memory | 1800 |
| Rubber protection frame | No |
| Continuity test | No |
| Display illumination | Ja |
| Gleichspannung max. | 550 V V |
| Gleichspannung min. | 1 V V |
| Wechselspannung max. | 550 V |
| Wechselspannung min. | 1 V |
| Nominal battery voltage | 1.5 V |
| Rotary field direction test | 1 |
| Isolationswiderstand max. | 1000 MOhm |
| Isolationswiderstand min. | 10 kOhm |
| Falls under electrical law | Ja |
| Falls under battery law | Ja |
Package contents and accessories
Use the stated package information to check which accessories are included. The product name and specification table should be read together when checking the supplied configuration. Do not assume that accessories shown alongside a tool are included unless the listing expressly identifies them as part of the package. If you need a particular accessory, ask about that item separately before ordering.
Choosing the correct variant
Compare the listed model with your equipment documentation and the requirements of the intended application. Where voltage, speed, torque or dimensions are specified, keep their units and any stated conditions together when making a comparison. Different settings or configurations can have different values; an isolated number may not describe the complete product. Consult the manufacturer documentation for operating and installation requirements.
Before ordering
Check the full model designation, package contents and technical details before placing an order. Similar names do not establish that two products are interchangeable. Keep any unclear specification as an open question rather than inferring it from another model. For a product enquiry, include the complete listing title and identify the particular detail that you need confirmed. This helps distinguish questions about the model, included accessories and the configuration shown on this page.
