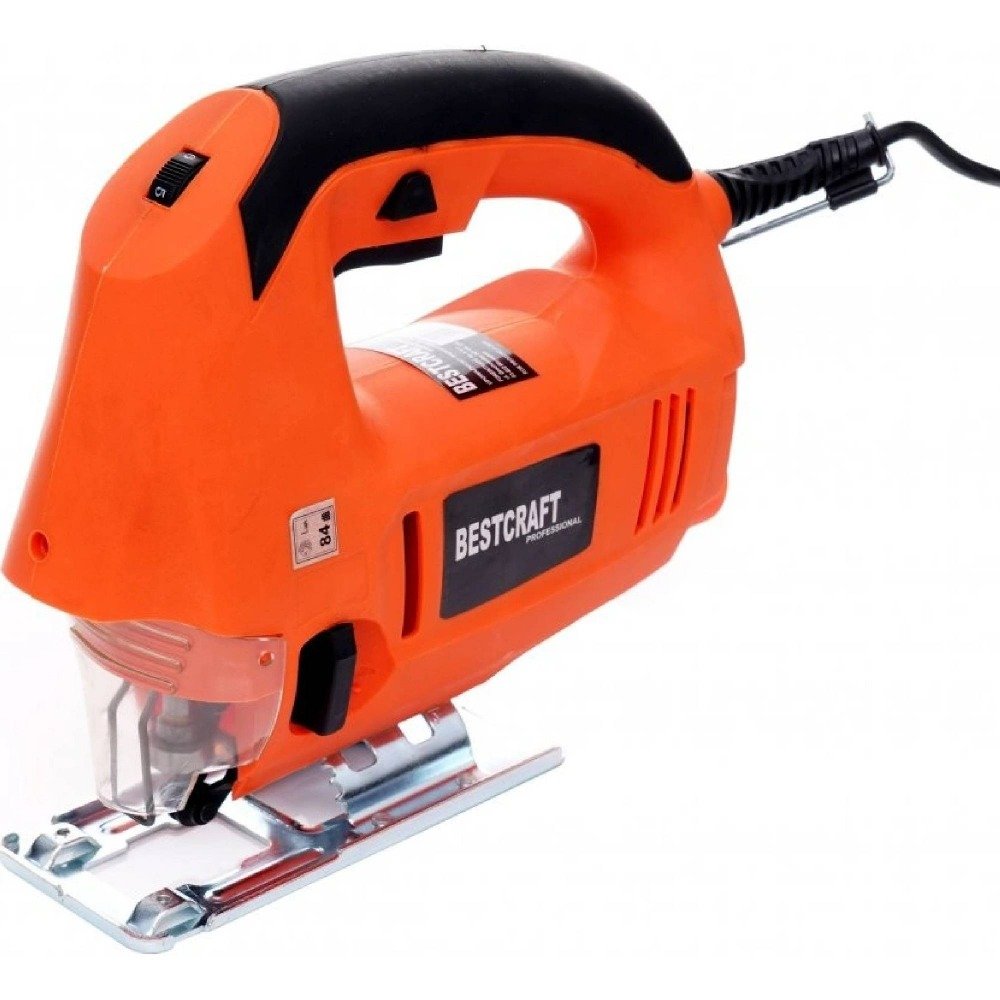

BESTCRAFT EC563 1200W Electric Jigsaw
Powerful 1200 W corded pendulum jigsaw with variable speed control, three-stage orbital action, integrated laser guide, adjustable bevel cutting, and dust extraction for woodworking and general workshop applications.
Category: Industrial Tools / Electric Power Tools / Jigsaws
Purpose: Designed for straight, curved, contour, pendulum, and bevel cutting in wood, wood-based panels, metals with suitable blades, plastics, and other compatible materials.
⚙️ What It Is
The BESTCRAFT EC563 is a corded electric jigsaw designed for woodworking, renovation, furniture assembly, installation, repair, and general workshop cutting.
The machine uses a 1200 W electric motor operating from a 230 V / 50 Hz mains supply. Variable electronic speed control provides approximately 500–3000 strokes per minute, allowing the operator to adjust cutting performance according to the material, workpiece thickness, and installed blade.
The EC563 incorporates a three-stage pendulum-action system, allowing the blade movement to be adapted for faster cutting in suitable materials. The maximum stated cutting depth is 80 mm.
A particularly useful feature is the integrated laser cutting-line indicator, which helps the operator follow the intended cutting path during straight work. The base can also be adjusted for bevel cuts up to 45°, making the tool suitable for angled cuts as well as standard vertical cutting.
The jigsaw also includes a dust-extraction outlet compatible with many standard workshop vacuum systems, helping reduce sawdust around the cutting area.
✅ Key Features
- Powerful 1200 W electric motor
- 230 V / 50 Hz mains operation
- Variable speed control
- 500–3000 strokes per minute
- Three-stage pendulum action
- Maximum cutting depth up to 80 mm
- Adjustable bevel cutting up to 45°
- Integrated laser cutting guide
- Dust extraction connection
- Ergonomic anti-slip handle
- Balanced body design
- Easy blade replacement
- Parallel guide included
- Suitable for woodworking and compatible metal-cutting applications
🏭 Applications
The BESTCRAFT EC563 is suitable for:
- Woodworking
- Cutting timber and wooden boards
- Plywood cutting
- Chipboard and MDF processing
- Furniture assembly
- Interior renovation
- Straight cutting
- Curved and contour cutting
- Bevel cutting
- General workshop fabrication
- Light metal cutting with a suitable blade
- Plastic cutting
- Installation and maintenance work
Always select a blade appropriate for the workpiece material and required cutting quality.
🔧 Technical Specifications
Manufacturer / Brand: BESTCRAFT
Model: EC563
Product Type: Corded Pendulum Jigsaw
Rated Input Power: 1200 W
Supply Voltage: 230 V
Frequency: 50 Hz
No-Load Stroke Rate: 500–3000 min⁻¹
Pendulum Action: 3 stages
Maximum Cutting Depth: 80 mm
Maximum Bevel Angle: 45°
Variable Speed: Yes
Laser Guide: Yes
Dust Extraction: Yes
Handle: Ergonomic anti-slip design
Weight: Approx. 2.2–2.3 kg depending on listed market specification.
Stroke Length: Not clearly specified in the available manufacturer product data.
Maximum Cutting Depth – Steel: Refer to the manufacturer’s documentation for the specific blade and material configuration.
Blade Holder Type: Refer to the supplied manual or physical tool before publishing a fixed blade-shank specification.
Protection Rating: Refer to the manufacturer’s technical documentation.
🔄 Compatibility
The BESTCRAFT EC563 uses replaceable jigsaw blades selected according to the material being processed.
Suitable blade applications may include:
- Softwood
- Hardwood
- Plywood
- MDF
- Chipboard
- Plastics
- Compatible metals
Blade shank type, tooth pitch, cutting length, and material specification should be verified before installation.
The integrated dust extraction outlet can also be connected to compatible workshop vacuum cleaners.
🛠 Installation & Maintenance
Disconnect the jigsaw from mains power before replacing the blade, adjusting the base, or carrying out maintenance.
Install the appropriate saw blade and make sure it is securely fixed before starting work.
Select the required stroke speed and pendulum-action level according to the material. Lower pendulum action is generally preferable for cleaner cuts and harder materials, while increased orbital movement can improve cutting speed in suitable wood.
For bevel cutting, adjust the base to the required angle up to 45° and securely lock it before operation.
Keep the ventilation openings, blade holder, base plate, laser area, and dust extraction outlet clean.
⚠️ Safety & Precautions
- Disconnect mains power before changing blades.
- Wear suitable eye and hearing protection.
- Secure the workpiece before cutting.
- Keep hands away from the moving blade.
- Use a suitable blade for each material.
- Do not use bent or damaged saw blades.
- Inspect the power cable before operation.
- Check for hidden wiring or pipes before cutting.
- Use dust extraction where appropriate.
- Follow the manufacturer’s operating and electrical safety instructions.
📦 Product Details
Form: Corded electric power tool
Brand: BESTCRAFT
Product Type: Electric Pendulum Jigsaw
Model: EC563
Power: 1200 W
Voltage: 230 V
Application: Wood, wood-based panels, plastics, compatible metals, and general workshop materials
Condition: Refer to product listing
Package Includes:
- BESTCRAFT EC563 electric jigsaw
- Universal wood-cutting saw blade
- Parallel guide with scale
- Vacuum cleaner / dust extraction connector
- Operating instructions
- Original packaging
Warranty: Available listings state a 12-month warranty; applicable InduParts.eu warranty conditions should also be checked.
