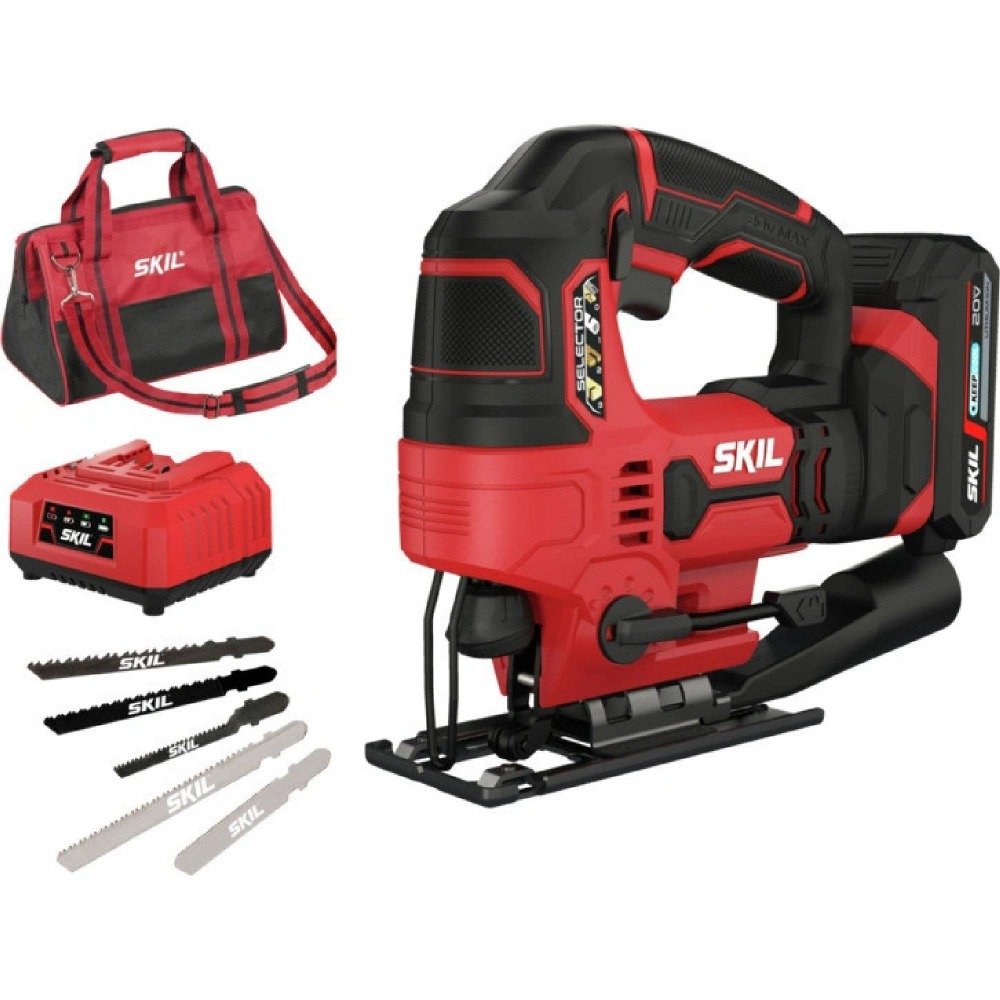

SKIL 3420DC 20V Max Cordless Jigsaw Kit

Versatile cordless jigsaw with variable speed control, four-stage orbital action, tool-free Clic blade changing, LED illumination, and complete 2.0 Ah battery kit for accurate straight, curved, and bevel cutting.

Category: Industrial Tools / Cordless Power Tools / Jigsaws

Purpose: Designed for straight, curved, contour, pendulum, and bevel cutting in wood, aluminium, metal, plastics, panels, and other compatible materials.

⚙️ What It Is

The SKIL 3420DC, product code SW1E3420DC, is a cordless jigsaw from the SKIL 20V Max Energy Platform. The system operates at 18 V nominal voltage and allows compatible batteries to be shared between numerous SKIL cordless power and garden tools.

The jigsaw provides a variable no-load stroke rate of 0–2,800 strokes per minute combined with a substantial 23 mm blade stroke. Four orbital-action positions allow the user to adapt blade movement according to the material and required cutting quality.

SKIL specifies maximum cutting capacities of 65 mm in wood, 8 mm in aluminium, and 6 mm in metal. This makes the 3420 suitable for general woodworking, furniture assembly, renovation, panel cutting, light metalwork, and installation applications.

The Clic blade-change system allows saw blades to be replaced without additional tools. A tool-free adjustable base plate supports bevel cutting up to 45°, while the integrated LED work light and dust blower improve visibility of the cutting line. A vacuum adapter can also be connected to suitable dust extraction equipment.

✅ Key Features

• SKIL 20V Max Energy Platform
• 18 V nominal operating voltage
• 0–2,800 strokes per minute
• 23 mm saw blade stroke
• Four orbital-action settings
• Maximum 65 mm cutting depth in wood
• Maximum 8 mm cutting depth in aluminium
• Maximum 6 mm cutting depth in metal
• Clic tool-free blade changing
• Tool-free base adjustment
• Bevel cutting up to 45°
• Integrated LED work light
• Dust blow-off function
• Vacuum extraction adapter
• Ergonomic Softgrip handle
• Keep Cool battery technology
• Battery, charger, blades, and carrying bag included

🏭 Applications

The SKIL 3420DC is suitable for:

• Woodworking
• Furniture assembly
• Cutting plywood and chipboard
• Cutting wooden panels
• Interior renovation
• Aluminium cutting
• Light metal cutting
• Plastic cutting
• Straight cuts
• Curved and contour cuts
• Bevel cutting
• Internal cut-outs
• General workshop maintenance
• Installation and repair work

Always select the correct jigsaw blade according to the workpiece material, thickness, and required cutting quality.

🔧 Technical Specifications

Manufacturer: SKIL
Model: 3420DC
Product Code: SW1E3420DC
EAN: 8719643006127
Product Type: Cordless Pendulum Jigsaw Kit
Battery Platform: SKIL 20V Max Energy Platform
Maximum Battery Voltage: 20 V Max
Nominal Battery Voltage: 18 V
Battery Type: Li-Ion
Included Battery Capacity: 2.0 Ah
Number of Batteries: 1
No-Load Stroke Rate: 0–2,800 min⁻¹
Stroke Length: 23 mm
Orbital Settings: 4
Maximum Cutting Depth – Wood: 65 mm
Maximum Cutting Depth – Aluminium: 8 mm
Maximum Cutting Depth – Metal: 6 mm
Maximum Bevel Angle: 45°
Blade Change: SKIL Clic tool-free system
LED Work Light: Yes
Dust Blower: Yes
Dust Extraction: Yes
Net Weight Without Battery: 1.8 kg
Net Weight With Battery: Approx. 2.2 kg
Charger Input: 220–240 V / 50–60 Hz
Charging Current: 2.4 A
Typical Charging Time: Approx. 1 hour with the supplied 2.0 Ah battery and charger.

Sound Pressure Level: 83 dB(A)
Sound Power Level: 94 dB(A)
Vibration – Wood Cutting: 4.0 m/s²
Vibration – Metal Cutting: 3.0 m/s².

🔄 Compatibility

The SKIL 3420DC is part of the 20V Max Energy Platform, allowing compatible SKIL batteries to be shared across tools in the same battery system.

SKIL’s Keep Cool battery technology is designed to help control battery-cell temperature during operation, while ActivCell technology manages communication between the battery and tool for optimized power delivery.

Compatible jigsaw blades should be selected for:

• Softwood
• Hardwood
• Plywood
• Laminated panels
• Aluminium
• Metal
• Plastics
• Other compatible materials

🛠 Installation & Maintenance

Remove the battery before installing or replacing a saw blade, adjusting the base plate, or cleaning the machine.

Use the Clic mechanism to install the appropriate blade and verify that it is securely locked before operation.

Select the correct stroke speed and orbital-action position according to the material. Lower orbital settings are preferable for harder materials and cleaner cutting, while increased orbital action can improve cutting speed in suitable wood.

Keep the blade holder, guide mechanism, ventilation openings, LED area, base plate, blower outlet, vacuum adapter, and battery contacts clean.

⚠️ Safety & Precautions

• Remove the battery before changing blades.
• Wear appropriate eye and hearing protection.
• Secure the workpiece before cutting.
• Keep hands away from the moving blade.
• Use the correct blade for each material.
• Do not use damaged or bent blades.
• Reduce orbital action for metal cutting.
• Check for hidden wiring or pipes before cutting.
• Use dust extraction where appropriate.
• Use only compatible SKIL batteries and chargers.
• Follow the manufacturer’s operating instructions.

📦 Product Details

Form: Complete cordless jigsaw kit
Manufacturer: SKIL
Product Type: Cordless Pendulum Jigsaw
Model: 3420DC
Product Code: SW1E3420DC
EAN: 8719643006127
Voltage: 20 V Max / 18 V nominal
Application: Wood, aluminium, metal, plastics, panels, and compatible materials
Condition: Refer to product listing

Package Includes:

• SKIL 3420 cordless jigsaw
• 1 × 20V Max / 18 V 2.0 Ah Keep Cool Li-Ion battery
• 1 × SKIL 3122 AA charger
• 3 × wood jigsaw blades
• 2 × metal jigsaw blades
• Vacuum cleaner adapter
• Carrying bag
• Operating instructions

Warranty: Refer to applicable SKIL and InduParts.eu warranty conditions.
