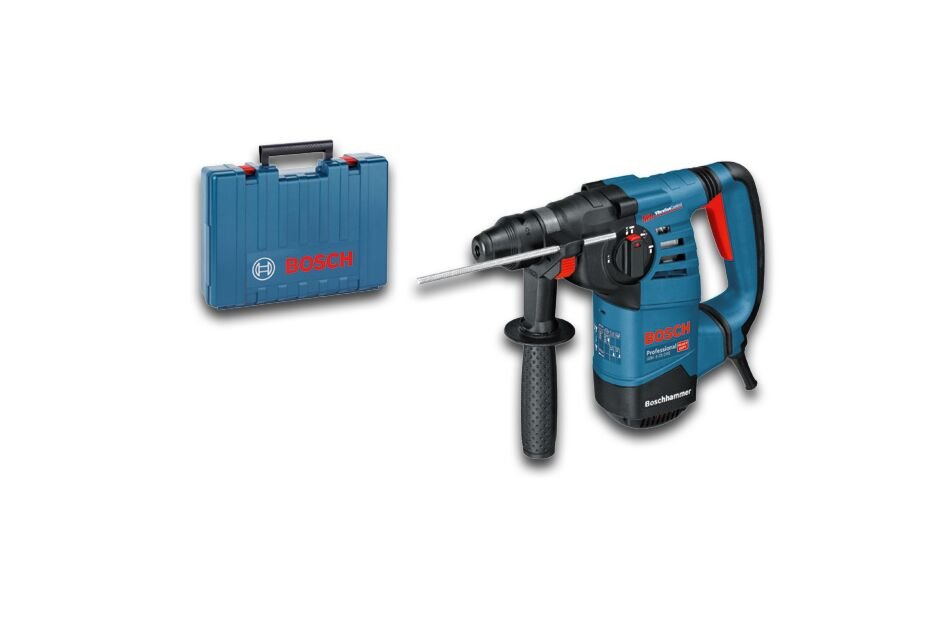

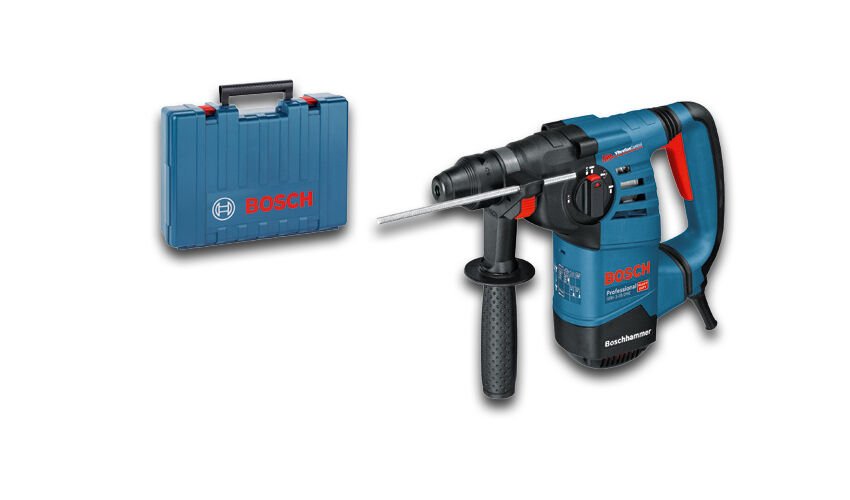

BOSCH hammer drill GBH 3-28 is available in the Induparts product catalogue. This listing identifies the exact model variant and brings together its technical specifications and package information so you can compare the product with your purchasing requirements.
Model and configuration
The complete product name identifies the configuration offered in this listing. Read every suffix and the package wording carefully when comparing similar products. A tool supplied without batteries or a charger is a different package from a kit that includes those accessories. The specification table below records the details provided for this particular entry.
Technical specifications
| Manufacturer | BOSCH |
|---|---|
| catalogue article nr. | 01000253 |
| Height | 233 mm |
| Wide | 360 mm |
| Length | 326 mm |
| Voltage | 230 V |
| Rotation stop | Ja |
| Engine brake | No |
| Impact stop | Ja |
| Nominal intake | 800 W |
| Speed preselection | No |
| Tool holder | SDS-Plus |
| Right/left rotation | Ja |
| Restart protection | No |
| Brushless motor | No |
| Single impact energy | 3.1 J |
| Weight [grams]according to EPTA | 3.5 kg |
| Schalldruckpegel LPA | 91 dB(A) |
| Schalldruckpegel LpA | 91 dB(A) |
| Overload protection (motor) | Ja |
| Integrated suction module | No |
| Schallleistungspegel LWA | 102 dB(A) |
| Leerlaufschlagzahl (max.) | 4000 r/min |
| Leerlaufschlagzahl (min.) | 0 r/min |
| Falls under electrical law | Ja |
| Lighting (work area) | No |
| Rotatable chisel positioning | Ja |
| Leerlaufdrehzahl 1. Gang (max.) | 900 r/min |
| Leerlaufdrehzahl 1. Gang (min.) | 0 r/min |
| Tool-free drill chuck change | Ja |
| Peak sound pressure level LpC,peak | 102 dB(C) |
| Constant electronics (load speed) | No |
| Triaxial vibration value chiseling | 9.5 m/s² |
| Schalldruckpegel Messunsicherheit KpA | 3 dB(A) |
| Bohrdurchmesser in Beton mit Hammerbohrern (max.) | 28 mm |
| Bohrdurchmesser in Beton mit Hammerbohrern (min.) | 4 mm |
| Triaxial vibration value drilling in concrete | 13 m/s² |
| Triaxial vibration value drilling in steel | 2.5 m/s² |
| Bohrdurchmesser in Mauerwerk mit Bohrkronen (max.) | 82 mm |
| Schutzklasse nach DIN EN 61140 (VDE 0140-1) | II |
| Bohrdurchmesser in Holz mit Rundschaftbohrern (max.) | 30 mm |
| Bohrdurchmesser in Holz mit Rundschaftbohrern (min.) | 1.5 mm |
| Machine and user protection during blocking | Ja |
| Bohrdurchmesser in Stahl mit Rundschaftbohrern (max.) | 13 mm |
| Triaxial vibration value Measurement uncertainty K (wood) | 1.5 m/s² |
| Triaxial vibration value Measurement uncertainty K (concrete) | 2 m/s² |
| Triaxial vibration value Measurement uncertainty K (steel) | 1.5 m/s² |
| Triaxial vibration value Measurement uncertainty K (chiseling) | 1.5 m/s² |
Package contents and accessories
Use the stated package information to check which accessories are included. The product name and specification table should be read together when checking the supplied configuration. Do not assume that accessories shown alongside a tool are included unless the listing expressly identifies them as part of the package. If you need a particular accessory, ask about that item separately before ordering.
Choosing the correct variant
Compare the listed model with your equipment documentation and the requirements of the intended application. Where voltage, speed, torque or dimensions are specified, keep their units and any stated conditions together when making a comparison. Different settings or configurations can have different values; an isolated number may not describe the complete product. Consult the manufacturer documentation for operating and installation requirements.
Before ordering
Check the full model designation, package contents and technical details before placing an order. Similar names do not establish that two products are interchangeable. Keep any unclear specification as an open question rather than inferring it from another model. For a product enquiry, include the complete listing title and identify the particular detail that you need confirmed. This helps distinguish questions about the model, included accessories and the configuration shown on this page.
