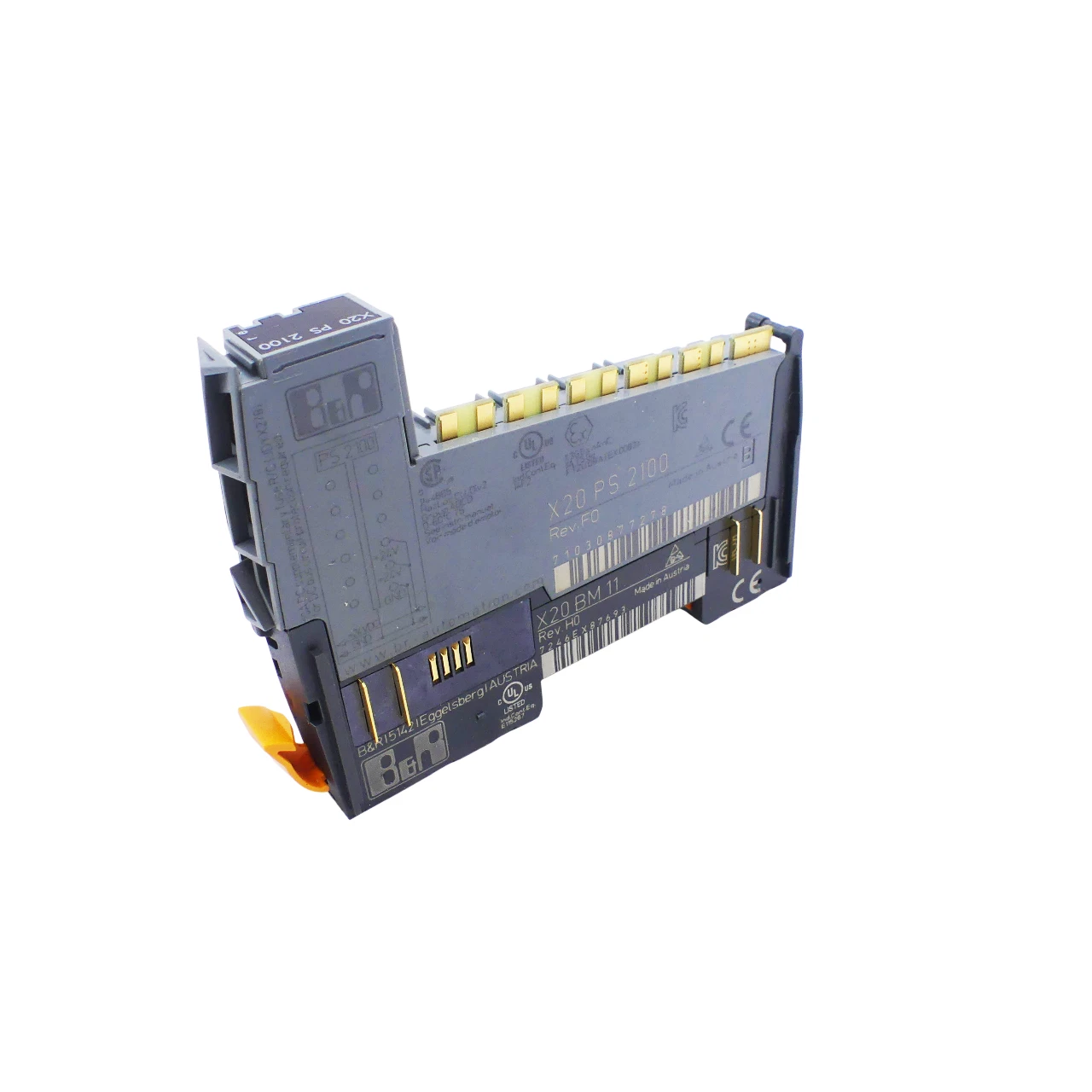

B&R X20PS2100 Einspeisemodul + X20BM01 Basismodul

B&R X20PS2100 Einspeisemodul + X20BM01
24 V DC supply module set for internal I/O power distribution in B&R X20 automation systems.

Category: Industrial Automation / Power Supply Module
Purpose: Supplying internal I/O power and creating potential groups in B&R X20 I/O systems

🌿 What It Is
The B&R X20PS2100 is an X20 power supply module used to provide 24 V DC internal I/O supply in B&R X20 automation systems. It is used together with the X20BM01 power supply bus module, which acts as the base module and interrupts the internal I/O power supply to the left side, making it suitable for creating separate potential groups. B&R specifies that the X20BM01 must be ordered separately for the X20PS2100, and the X20BM01 is described as the base for all X20 power supply modules.

✅ Key Benefits

• Designed for B&R X20 I/O systems
• Provides 24 V DC internal I/O supply
• Includes compatible X20BM01 bus module
• Supports creation of separate potential groups
• Internal I/O power supply is interrupted to the left
• Compact 12.5 mm X20 system pitch
• Suitable for modular machine automation systems
• Reliable B&R spare part set for maintenance and replacement

🧴 Use & Installation

1. Mount the X20BM01 bus module in the required position of the X20 station.
2. Insert the X20PS2100 power supply module onto the bus module.
3. Connect the 24 V DC supply according to the B&R wiring instructions.
4. Use the module to feed or separate the internal I/O supply group as required.
5. Check voltage, diagnostics, and I/O group operation before machine startup.

⚠️ Safety & Precautions

• Installation must be performed by qualified electrical or automation personnel.
• Disconnect power before mounting, wiring, or replacing the module.
• Use only with compatible B&R X20 system components.
• Check polarity, supply voltage, and potential group design before commissioning.
• The required terminal block should be selected according to the B&R system configuration.
• Use under technical supervision in industrial automation environments.

📦 Product Details
Form: X20 power supply module with bus module
Active Components: X20PS2100 supply module + X20BM01 power supply bus module
Target Group: Automation engineers, PLC technicians, machine builders, maintenance teams
Manufacturer: B&R Automation
Main Module: X20PS2100
Bus Module: X20BM01
Function: Internal I/O power supply
Nominal Voltage: 24 V DC
Bus Module Type: 24 V DC keyed power supply bus module
Internal I/O Supply: Interrupted to the left
Power Consumption X20BM01: 0.13 W bus power
Permissible Contact Load X20BM01: 10 A
Protection Rating: IP20
Pitch: 12.5 mm +0.2 mm
Pack Size: 1 X20PS2100 module + 1 X20BM01 bus module

🛒 Buy B&R X20PS2100 + X20BM01
Order the B&R X20PS2100 power supply module with X20BM01 bus module from Induparts for reliable 24 V DC internal I/O power distribution in modular automation systems.
