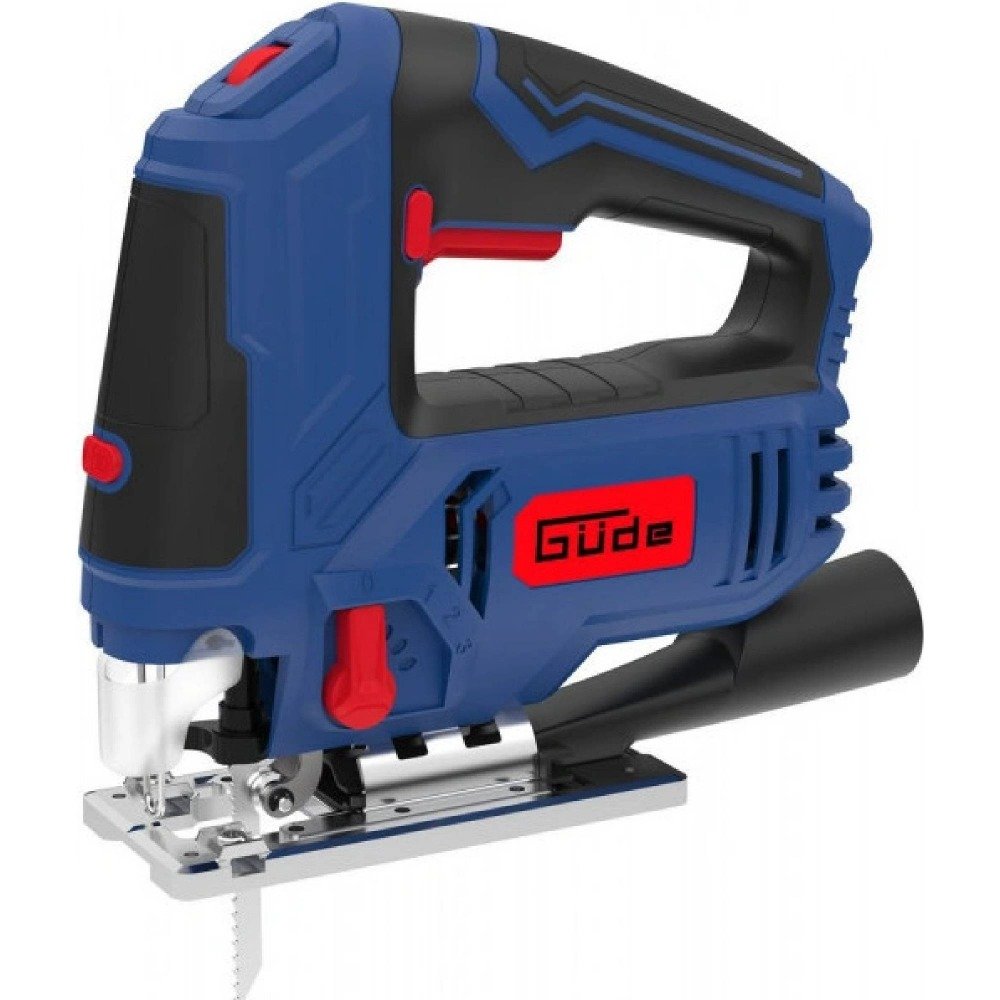

GÜDE STS 850 58219 850W Electric Jigsaw
Powerful 850 W corded pendulum jigsaw with variable speed control, four-stage orbital action, tool-free blade changing, LED illumination, laser cutting guide, and 100 mm wood-cutting capacity.
Category: Industrial Tools / Electric Power Tools / Jigsaws
Purpose: Designed for straight, curved, contour, pendulum, and bevel cutting in wood, steel, plastics, panels, and other compatible workshop and construction materials.
⚙️ What It Is
The GÜDE STS 850, article number 58219, is a versatile corded electric jigsaw designed for woodworking, renovation, furniture assembly, interior installation, maintenance, and general workshop applications.
Its 850 W motor operates from a 230 V mains supply and provides continuously adjustable speed between 800 and 3,000 strokes per minute. The variable-speed system allows cutting performance to be adapted to different materials, blade designs, and required cutting quality.
The machine uses a 20 mm blade stroke and features a four-position pendulum system consisting of three orbital settings plus position 0. The non-orbital position is suitable for greater cutting control and cleaner finishes, while increased pendulum action can improve cutting speed in appropriate wood applications.
GÜDE specifies maximum cutting capacities of 100 mm in wood and 8 mm in steel. The adjustable base plate can be tilted up to 45°, allowing accurate bevel cuts in addition to standard vertical cutting.
The STS 850 also incorporates an LED work light and laser cutting-line guide for improved visibility and alignment. A tool-free blade-change mechanism allows fast saw-blade replacement, while the external dust-extraction connection helps keep the working area cleaner.
✅ Key Features
- 850 W electric motor
- 230 V mains operation
- Continuously adjustable speed
- 800–3,000 strokes per minute
- 20 mm saw blade stroke
- Four pendulum settings: 0 + 3 orbital levels
- Maximum 100 mm cutting depth in wood
- Maximum 8 mm cutting depth in steel
- Tool-free saw blade changing
- Adjustable base plate up to 45°
- Integrated LED work light
- Integrated laser cutting guide
- Dust extraction connection
- Transparent blade guard
- Lock-on switch for continuous operation
- Parallel guide mounting
- Ergonomic Softgrip handle
- 3 m power cable
🏭 Applications
The GÜDE STS 850 is suitable for:
- Woodworking
- Cutting timber and wooden boards
- Plywood and chipboard cutting
- Furniture assembly
- Interior fitting
- Renovation work
- Steel cutting with suitable blades
- Plastic cutting
- Straight cuts
- Curved and contour cuts
- Internal cut-outs
- Bevel cutting
- Workshop maintenance
- General installation work
The correct saw blade should always be selected according to the workpiece material, thickness, tooth geometry, and desired cutting quality.
🔧 Technical Specifications
Manufacturer: GÜDE GmbH & Co. KG
Model: STS 850
Article Number: 58219
GTIN / EAN: 4015671632111
Product Type: Corded Pendulum Jigsaw
Supply Voltage: 230 V
Rated Input Power: 850 W
No-Load Stroke Rate: 800–3,000 min⁻¹
Stroke Length: 20 mm
Pendulum Action: 4 positions — 0 + 3 orbital levels
Maximum Cutting Depth – Wood: 100 mm
Maximum Cutting Depth – Steel: 8 mm
Maximum Bevel Angle: 45°
Blade Change: Tool-free quick-change system
LED Work Light: Yes
Laser Guide: Yes
Dust Extraction: Yes
Transparent Blade Guard: Yes
Softgrip: Yes
Cable Length: 3 m
Dimensions: Approx. 240 × 70 × 215 mm
Net Weight: Approx. 2.2 kg
Motor Type: Brushed; official spare-parts documentation lists replaceable carbon brushes for this model.
🔄 Compatibility
The GÜDE STS 850 uses replaceable jigsaw blades compatible with its quick-change blade holder.
Suitable blades can be selected for:
- Softwood
- Hardwood
- Plywood
- Chipboard
- Laminated panels
- Plastics
- Steel
- Other compatible sheet materials
GÜDE lists the 58156 five-piece jigsaw blade set as an optional accessory for the STS 850.
🛠 Installation & Maintenance
Disconnect the jigsaw from mains power before replacing the blade, adjusting the base plate, cleaning, or performing maintenance.
Insert the appropriate blade into the tool-free quick-change holder and confirm that it is securely locked before operation.
Adjust the stroke rate and pendulum level according to the workpiece. Lower orbital settings are preferable for controlled or cleaner cutting, while higher settings can improve cutting speed in suitable wood.
For bevel work, set the base plate to the required angle up to 45° and securely lock it before starting the cut.
Keep the ventilation openings, blade holder, guide mechanism, LED and laser area, base plate, and dust-extraction connection clean.
⚠️ Safety & Precautions
- Disconnect mains power before changing blades.
- Wear suitable eye and hearing protection.
- Do not look directly into the laser beam.
- Secure the workpiece before cutting.
- Keep hands away from the moving blade.
- Use the correct blade for each material.
- Do not use bent, cracked, or damaged blades.
- Inspect the mains cable before operation.
- Check for hidden wiring or pipes before cutting.
- Use suitable dust extraction when required.
- Follow GÜDE operating and electrical safety instructions.
📦 Product Details
Form: Corded electric power tool
Manufacturer: GÜDE
Product Type: Electric Pendulum Jigsaw
Model: STS 850
Article Number: 58219
GTIN: 4015671632111
Power: 850 W
Application: Wood, steel, plastics, panels, and compatible materials
Condition: Refer to product listing
Package Includes:
- GÜDE STS 850 electric jigsaw
- 1 × wood-cutting saw blade
- 1 × Allen key
- 1 × parallel guide
Warranty: Refer to applicable GÜDE and InduParts.eu warranty conditions.
