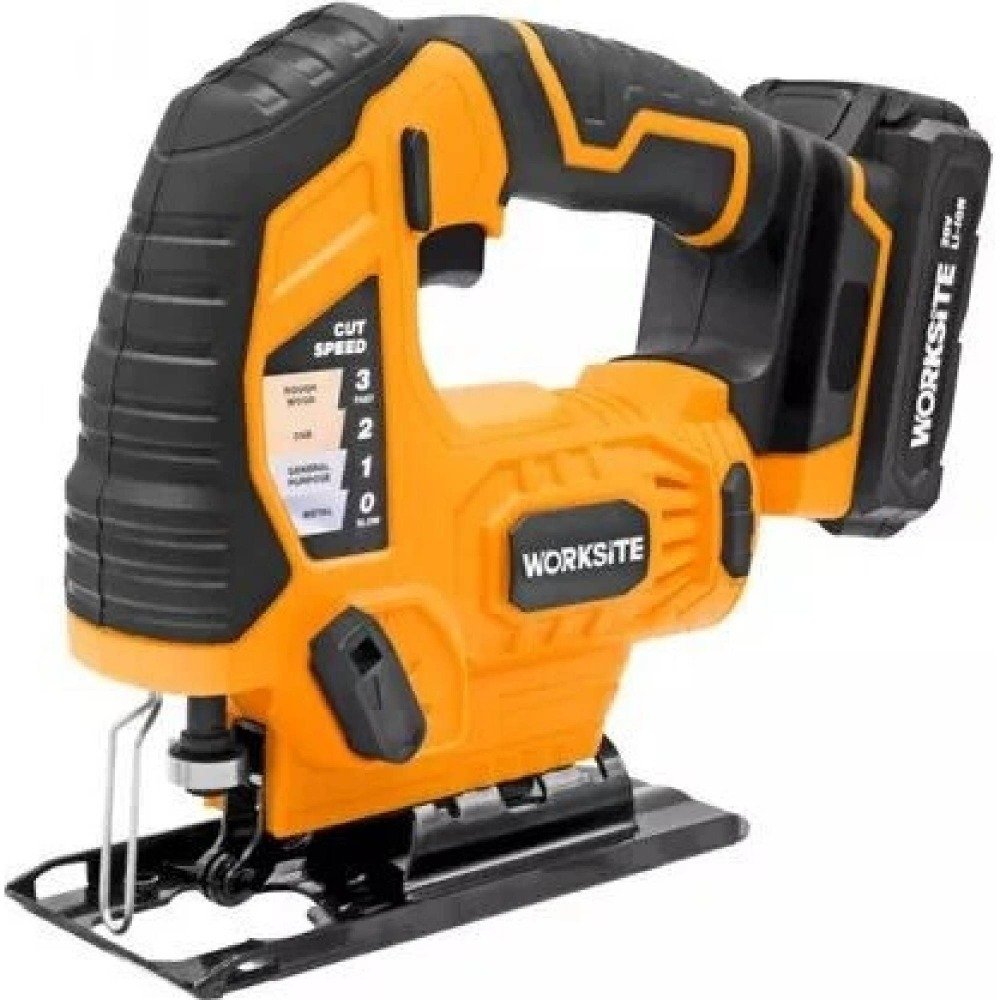

WORKSITE CJS326 20V Cordless Jigsaw Kit

Compact 20 V cordless pendulum jigsaw with variable speed control, four orbital settings, quick-release blade clamp, LED work light, and complete 2.0 Ah battery kit for versatile mobile cutting.

Category: Cordless Power Tools / Jigsaws

Purpose: Designed for straight, curved, contour, pendulum, and bevel cutting in wood, aluminium, steel, plastics, panels, and other compatible materials.

⚙️ What It Is

The WORKSITE CJS326 is a compact 20 V cordless jigsaw designed for woodworking, renovation, furniture assembly, installation, maintenance, and general workshop cutting.

The machine operates from a 20 V Max lithium-ion battery platform and provides a variable no-load stroke rate of 0–3,000 strokes per minute. Its 19 mm blade stroke offers a useful combination of cutting speed and control for common woodworking and light metal applications.

The CJS326 incorporates a four-position orbital mechanism with settings 0, 1, 2, and 3. This allows the operator to choose between controlled cutting with minimal orbital action and faster material removal when working with suitable wood materials.

Current European distribution data specifies maximum cutting capacities of 80 mm in wood, 18 mm in aluminium, and 10 mm in metal. The adjustable base supports bevel cutting from 0° to 45°.

A quick-release blade clamp simplifies blade replacement, while the integrated LED work light improves visibility in poorly illuminated areas. The cordless design makes the tool useful for work where access to mains electricity is inconvenient.

✅ Key Features

• 20 V Max cordless operation
• 2.0 Ah lithium-ion battery
• 0–3,000 strokes per minute
• 19 mm saw blade stroke
• Four orbital positions: 0 / 1 / 2 / 3
• Maximum 80 mm cutting depth in wood
• Maximum 18 mm cutting depth in aluminium
• Maximum 10 mm cutting depth in metal
• Quick-release blade clamp
• Variable speed trigger
• Bevel adjustment from 0° to 45°
• Integrated LED work light
• Safety lock-off switch
• Soft-grip handle
• Cordless portable construction
• Battery and charger included
• Carrying bag included

🏭 Applications

The WORKSITE CJS326 is suitable for:

• Woodworking
• Furniture assembly
• Cutting timber and wooden panels
• Plywood and chipboard cutting
• Interior renovation
• Aluminium cutting
• Light metal cutting
• Plastic cutting
• Straight cuts
• Curved and contour cuts
• Internal cut-outs
• Bevel cutting
• General repair and maintenance

The manufacturer/distributor positions the CJS326 as suitable for both DIY and general workshop use. Select the correct blade according to material, thickness, tooth pitch, and required cutting finish.

🔧 Technical Specifications

Manufacturer: WORKSITE
Model: CJS326
European Order Number: 25001326
EAN: 6956774611925
Product Type: Cordless Pendulum Jigsaw
Battery Voltage: 20 V Max
Battery Type: Lithium-Ion
Included Battery Capacity: 2.0 Ah
No-Load Stroke Rate: 0–3,000 min⁻¹
Stroke Length: 19 mm
Orbital Action: 4 positions – 0 / 1 / 2 / 3
Maximum Cutting Depth – Wood: 80 mm
Maximum Cutting Depth – Aluminium: 18 mm
Maximum Cutting Depth – Metal: 10 mm
Maximum Bevel Angle: 45°
Blade Clamp: Quick-release
LED Work Light: Yes
Safety Lock-Off: Yes
Typical Charging Time: 1–2 hours
Bare/Operating Tool Weight: Approx. 2.0 kg in catalogue data; distributor package weight can be higher because it includes the battery, charger, blades, and bag.

Motor Type: Not clearly specified in reliable WORKSITE technical documentation; verify the physical production revision before listing it as brushed or brushless.

🔄 Compatibility

The WORKSITE CJS326 belongs to WORKSITE’s compatible 20 V cordless range used by the European Kombi MAX Plus distribution system.

The supplied battery is a:

20 V Max / 2.0 Ah Li-Ion battery.

Replacement battery packs and chargers should be verified against model CJS326 and the relevant WORKSITE 20 V battery interface.

The quick-release blade holder accepts compatible jigsaw blades selected for:

• Wood
• Plywood
• MDF
• Plastics
• Aluminium
• Steel
• Other compatible materials

🛠 Installation & Maintenance

Remove the battery before replacing the blade, adjusting the base, or cleaning the tool.

Install a suitable blade in the quick-release clamp and verify that it is securely locked before operation.

Select the required orbital setting according to the material. Position 0 provides minimal orbital movement for more controlled cuts, while higher settings can increase cutting speed in suitable wood.

For bevel cutting, set the base to the required angle within the 0–45° range and securely lock it.

Keep the blade holder, guide mechanism, ventilation openings, LED area, base plate, and battery contacts clean.

⚠️ Safety & Precautions

• Remove the battery before changing blades.
• Wear appropriate eye and hearing protection.
• Secure the workpiece before cutting.
• Keep hands away from the moving blade.
• Use the correct blade for each material.
• Do not use bent or damaged blades.
• Reduce orbital action for metal cutting.
• Check for hidden wiring or pipes.
• Use only compatible batteries and chargers.
• Follow WORKSITE operating and battery safety instructions.

📦 Product Details

Form: Complete cordless jigsaw kit
Manufacturer: WORKSITE
Product Type: Cordless Pendulum Jigsaw
Model: CJS326
Order Number: 25001326
EAN: 6956774611925
Voltage: 20 V Max
Battery Capacity: 2.0 Ah
Application: Wood, aluminium, metal, plastics, panels, and compatible materials
Condition: Refer to product listing

Package Includes:

• WORKSITE CJS326 cordless jigsaw
• 1 × 20 V 2.0 Ah Li-Ion battery
• Battery charger
• 1 × wood-cutting blade
• 1 × metal-cutting blade
• Textile carrying bag

Warranty: The European distributor lists a 24-month warranty for product code 25001326; applicable InduParts.eu conditions should also be checked.
