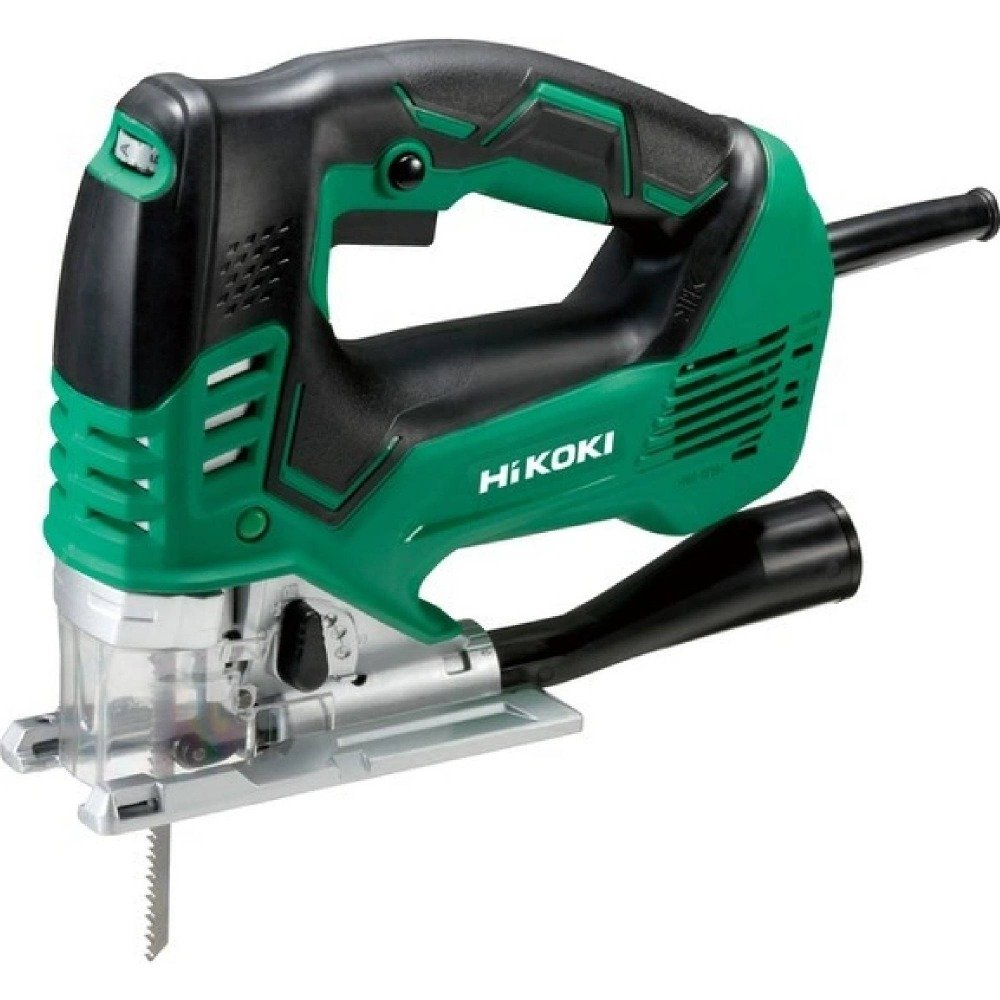

HiKOKI CJ160VW1Z 800W Professional Electric Jigsaw

High-performance 800 W professional jigsaw with 160 mm wood-cutting capacity, four-stage orbital action, AUTO mode, tool-free blade changing, LED illumination, and rigid aluminium base for demanding workshop and installation applications.

Category: Industrial Tools / Electric Power Tools / Jigsaws

Purpose: Designed for precise straight, curved, contour, orbital, plunge, and bevel cutting in wood, aluminium, mild steel, stainless steel, plastics, panels, and compatible construction materials.

⚙️ What It Is

The HiKOKI CJ160VW1Z, formerly associated with the Hitachi Power Tools brand, is a professional corded jigsaw designed for demanding woodworking, carpentry, cabinetmaking, construction, interior fitting, renovation, and workshop fabrication.

Its 800 W motor provides a no-load stroke rate between 800 and 2,800 strokes per minute. The electronic control system offers five selectable speed levels together with an AUTO mode, which automatically regulates blade speed between idle and loaded operation.

The machine uses a substantial 26 mm blade stroke and a four-stage orbital mechanism, allowing the operator to optimise cutting behaviour according to material type and required finish. HiKOKI specifies maximum cutting capacities of 160 mm in wood, 20 mm in aluminium, 10 mm in mild steel, and 2.5 mm in stainless steel.

The CJ160V also features a rigid, torsion-resistant nickel-plated aluminium base plate, tool-free blade replacement, integrated LED lighting, chip blower, and Soft Grip handle. These features help improve control and visibility during detailed or prolonged cutting work.

✅ Key Features

• Professional 800 W electric motor
• 230 V / 50 Hz European configuration
• 800–2,800 strokes per minute
• 26 mm saw blade stroke
• Four-stage orbital action
• Five-stage electronic stroke-rate control
• AUTO speed-control mode
• Maximum 160 mm cutting depth in wood
• Maximum 20 mm cutting depth in aluminium
• Maximum 10 mm cutting depth in mild steel
• Maximum 2.5 mm cutting depth in stainless steel
• Minimum cutting radius of 25 mm
• Maximum bevel angle of 45°
• Tool-free saw blade changing
• Integrated LED work light
• Chip blower
• Soft Grip loop handle
• Nickel-plated aluminium base plate
• Stackable System Case 2 included

🏭 Applications

The HiKOKI CJ160VW1Z is suitable for:

• Professional woodworking
• Carpentry
• Cabinetmaking
• Furniture production
• Interior installation
• Kitchen and worktop cut-outs
• Construction and renovation
• Timber and panel cutting
• Plywood and MDF cutting
• Aluminium cutting
• Mild-steel cutting
• Stainless-steel cutting with a suitable blade
• Plastic and synthetic-resin cutting
• Curved and contour cuts
• Bevel cutting
• Internal cut-outs

HiKOKI’s operating documentation specifically lists wood, mild steel, aluminium, copper, synthetic resins, thin construction materials, and stainless steel with the appropriate blade among the intended applications.

🔧 Technical Specifications

Manufacturer: HiKOKI Power Tools
Former Brand: Hitachi Power Tools
Model: CJ160V
Version / Article Number: CJ160VW1Z
EAN: 4966376293902
Product Type: Professional Corded Jigsaw
Handle Type: Loop / Bow Handle
Rated Input Power: 800 W
Voltage: 230 V
Mains Frequency: 50 Hz
No-Load Stroke Rate: 800–2,800 min⁻¹
Stroke Length: 26 mm
Pendulum / Orbital Levels: 4
Maximum Cutting Depth – Wood: 160 mm
Maximum Cutting Depth – Aluminium: 20 mm
Maximum Cutting Depth – Mild Steel: 10 mm
Maximum Cutting Depth – Stainless Steel: 2.5 mm
Minimum Cutting Radius: 25 mm
Maximum Bevel Angle: 45°
Tool-Free Blade Change: Yes
AUTO Mode: Yes
LED Work Light: Yes
Chip Blower: Yes
Tool Weight: 2.7 kg
Cable Length: 2.5 m
Dimensions: Approx. 249 × 75 × 205 mm
Sound Pressure Level: 84 dB(A)
Sound Power Level: 95 dB(A)

🔄 Compatibility

The HiKOKI CJ160V accepts compatible jigsaw blades selected according to the material and required cutting performance.

Suitable blade applications include:

• Softwood
• Hardwood
• Plywood
• MDF
• Aluminium
• Copper
• Mild steel
• Stainless steel
• Plastics
• Synthetic resins

The manufacturer specifically references Blade No. 97 for stainless-steel cutting.

Always verify blade length, tooth pitch, material rating, and shank compatibility before installation.

🛠 Installation & Maintenance

Disconnect the jigsaw from mains power before replacing a blade, adjusting the base, cleaning, or performing maintenance.

Use the tool-free blade-change mechanism to install the required blade and verify that it is securely seated.

Set the electronic stroke rate and orbital level according to the workpiece. Lower orbital movement is generally preferable for metal, plastics, and clean cutting, while higher settings can increase cutting speed in suitable wood.

For bevel cutting, adjust the base to the required angle up to 45° and securely lock it before operation.

Keep the blade holder, guide system, LED area, ventilation openings, blower, and aluminium base clean.

⚠️ Safety & Precautions

• Disconnect mains power before changing blades.
• Wear suitable eye and hearing protection.
• Secure the workpiece before cutting.
• Keep hands away from the moving blade.
• Use a blade suitable for the material.
• Do not use bent or damaged blades.
• Reduce orbital action when cutting metal.
• Check for hidden wiring or pipes.
• Use dust extraction where appropriate.
• Inspect the mains cable before use.
• Follow HiKOKI operating and workplace safety instructions.

📦 Product Details

Form: Corded professional jigsaw set
Manufacturer: HiKOKI
Former Brand: Hitachi Power Tools
Product Type: Professional Pendulum Jigsaw
Model: CJ160V
Article Number: CJ160VW1Z
EAN: 4966376293902
Power: 800 W
Application: Wood, aluminium, mild steel, stainless steel, plastics, and compatible materials
Condition: Refer to product listing

Package Includes:

• HiKOKI CJ160V electric jigsaw
• Blade No. 41
• Blade No. 123X
• Splinter guard
• Sub base
• Chip cover
• Stackable System Case 2

Warranty: HiKOKI’s current European product information lists up to 36 months with registration, subject to regional conditions.
