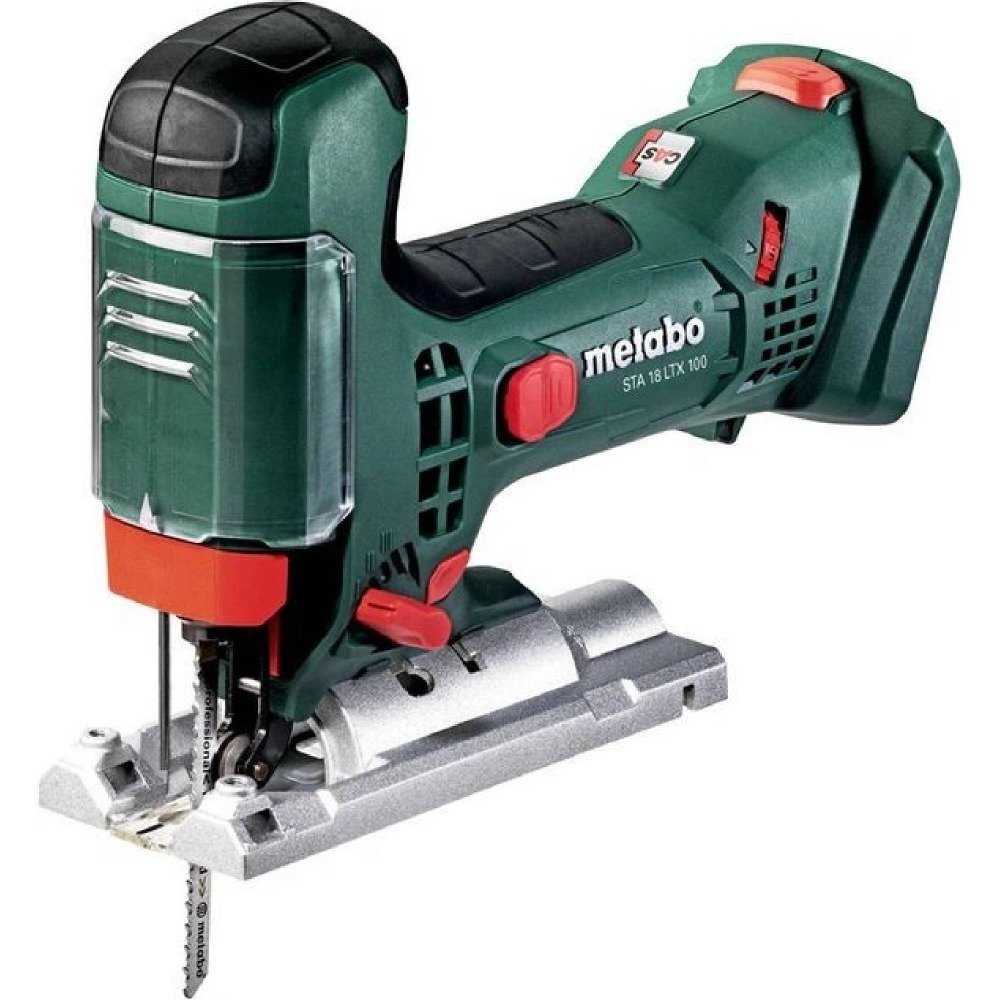

Metabo STA 18 LTX 100 601002890 18V Cordless Jigsaw
Professional 18 V cordless jigsaw with Vario-Tacho-Constamatic electronics, Metabo Quick tool-free blade changing, four-stage pendulum action, and up to 100 mm cutting capacity in wood.
Category: Industrial Tools / Cordless Power Tools / Jigsaws
Purpose: Designed for precise straight, curved, pendulum, and bevel cutting in wood, non-ferrous metals, sheet steel, plastics, panels, and other compatible materials.
⚙️ What It Is
The Metabo STA 18 LTX 100 601002890 is a professional cordless jigsaw from the Metabo 18 V platform. It is designed for woodworking, furniture manufacturing, construction, renovation, installation, fabrication, and professional maintenance where cordless mobility and accurate cutting are required.
The tool uses Vario-Tacho-Constamatic (VTC) electronics, providing adjustable stroke speed and electronic speed stabilisation under load. The no-load stroke rate can be adjusted from approximately 550 to 2,800 strokes per minute, allowing the operator to adapt cutting performance to different materials.
A 22 mm saw blade stroke combined with four pendulum-action settings provides flexibility between precise cutting and faster material removal. Metabo specifies maximum cutting capacities of 100 mm in wood, 25 mm in non-ferrous metals, and 10 mm in sheet steel.
The STA 18 LTX 100 also features the Metabo Quick tool-free blade-changing system, allowing rapid blade replacement. A selectable chip-blowing function keeps the cutting line visible, while the extraction connection enables connection to suitable dust extraction equipment.
✅ Key Features
- Professional Metabo 18 V cordless jigsaw
- Vario-Tacho-Constamatic electronics
- Electronic speed stabilisation
- Variable stroke-rate adjustment
- 550–2,800 strokes per minute
- 22 mm saw blade stroke
- Four-stage pendulum action
- Metabo Quick tool-free blade change
- Maximum 100 mm cutting depth in wood
- Maximum 25 mm cutting depth in non-ferrous metal
- Maximum 10 mm cutting depth in sheet steel
- Adjustable bevel cutting up to 45° left and right
- Preset bevel positions
- Selectable chip-blowing function
- Dust extraction connection
- Die-cast aluminium gear housing
- Soft-grip handle
- Removable surface-protection base
- Compatible with Metabo 18 V batteries
- Bare-tool configuration
🏭 Applications
The Metabo STA 18 LTX 100 is suitable for:
- Professional woodworking
- Carpentry
- Furniture manufacturing
- Cabinetmaking
- Construction and renovation
- Interior installation
- Cutting wooden boards and panels
- Cutting plywood and MDF
- Non-ferrous metal cutting
- Sheet steel cutting
- Plastic cutting
- Curved and contour cutting
- Bevel cutting
- Workshop fabrication
- Industrial maintenance
Always select a saw blade suitable for the material, workpiece thickness, and required cutting quality.
🔧 Technical Specifications
Manufacturer: Metabo
Model: STA 18 LTX 100
Order Number: 601002890
EAN: 4007430324603
Product Type: Cordless Jigsaw
Battery Voltage: 18 V
Battery Platform: Metabo 18 V
Battery Type: Li-Ion / LiHD compatible
Electronic Control: Vario-Tacho-Constamatic (VTC)
No-Load Stroke Rate: 550–2,800 min⁻¹
Saw Blade Stroke: 22 mm
Pendulum Action: 4 levels
Maximum Cutting Depth – Wood: 100 mm
Maximum Cutting Depth – Non-Ferrous Metal: 25 mm
Maximum Cutting Depth – Sheet Steel: 10 mm
Swivel Range: -45° to +45°
Blade Change: Metabo Quick, tool-free
Chip Blower: Yes
Dust Extraction Connection: Yes
Weight Without Battery: Approx. 1.9 kg
Weight With Battery: Approx. 2.3 kg depending on battery configuration
Protection Rating: Refer to the manufacturer’s datasheet.
Dimensions: Refer to the manufacturer’s documentation.
Operating Temperature: Refer to Metabo documentation.
Country of Manufacture: Refer to the product identification label.
🔄 Compatibility
The Metabo STA 18 LTX 100 is designed for the Metabo 18 V cordless battery platform and can be operated with suitable Metabo 18 V Li-Ion and LiHD battery packs.
Compatible jigsaw blades should be selected according to:
- Blade mounting system
- Workpiece material
- Required cutting depth
- Tooth geometry
- Desired cutting quality
Metabo also lists accessories such as a circle and parallel guide, protective base cover, guide rail adapter, and compatible guide rails for the STA 18 LTX 100.
🛠 Installation & Maintenance
Remove the battery before installing or replacing a saw blade.
Insert the required blade using the Metabo Quick system and verify that it is correctly seated before operation. Select the appropriate stroke speed and pendulum-action setting according to the material.
For bevel cutting, adjust the base to the required angle and securely lock it before starting the cut.
Keep the blade holder, guide mechanism, ventilation openings, base plate, chip blower, and extraction connection clean. Inspect the battery contacts and blade condition regularly.
⚠️ Safety & Precautions
- Remove the battery before replacing blades.
- Wear suitable eye and hearing protection.
- Secure the workpiece before cutting.
- Keep hands away from the moving blade.
- Use a blade suitable for the material.
- Do not use damaged or bent blades.
- Check the base adjustment before bevel cutting.
- Use dust extraction where appropriate.
- Do not modify the tool or battery system.
- Follow Metabo operating and workplace safety instructions.
📦 Product Details
Form: Cordless bare power tool
Manufacturer: Metabo
Product Type: Professional Cordless Jigsaw
Model: STA 18 LTX 100
Order Number: 601002890
EAN: 4007430324603
Voltage: 18 V
Application: Wood, non-ferrous metals, sheet steel, plastics, and compatible materials
Condition: Refer to product listing
Package Includes:
- Metabo STA 18 LTX 100 cordless jigsaw
- Extraction nozzle
- Transparent protective cover
- Anti-splinter insert
- Hexagonal wrench
Battery: Not included
Charger: Not included
Transport Case: Not included
🛒 Buy Metabo STA 18 LTX 100 601002890
Order the Metabo STA 18 LTX 100 601002890 18V Cordless Jigsaw from InduParts.eu for genuine professional industrial tools, fast shipping, and professional service.
