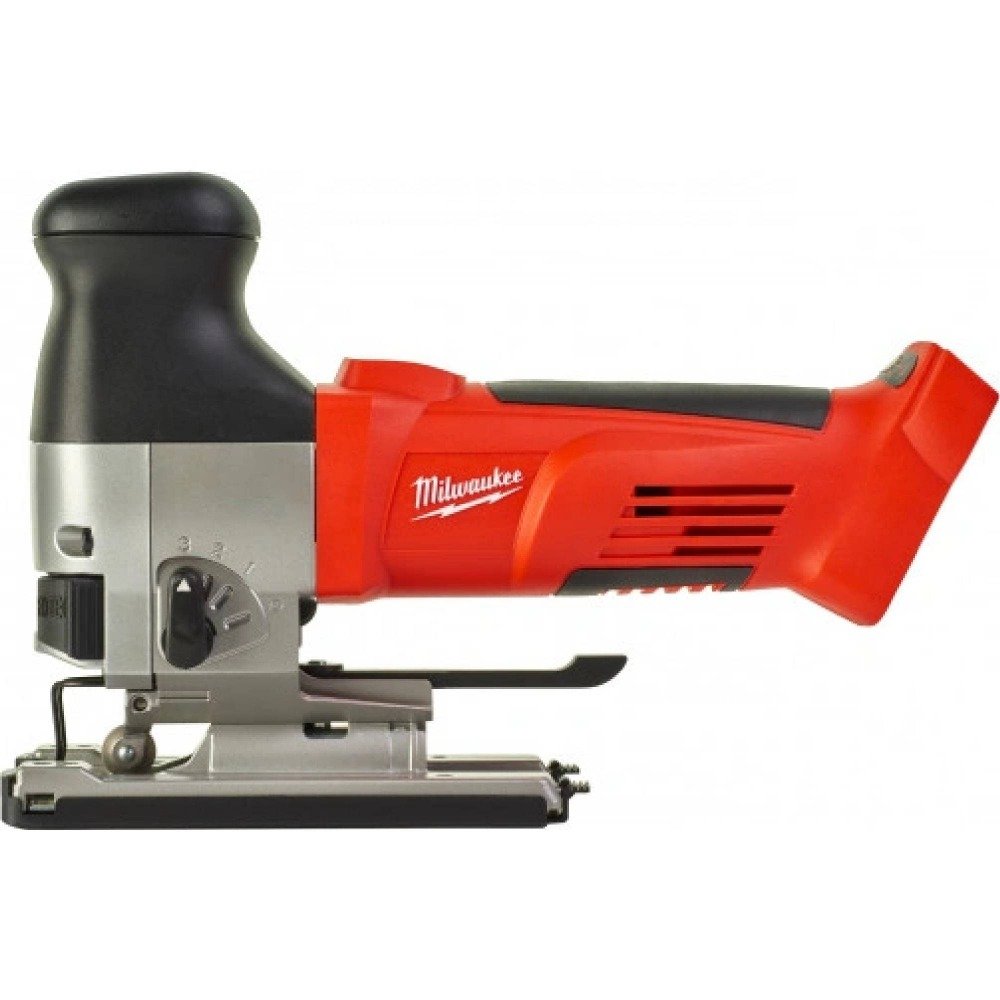

Milwaukee HD18 JSB-0 4933417845 18V Cordless Jigsaw
Professional 18 V cordless jigsaw with high cutting capacity, FIXTEC™ tool-free blade changing, adjustable pendulum action, and precise blade guidance for demanding workshop and installation applications.
Category: Industrial Tools / Cordless Power Tools / Jigsaws
Purpose: Designed for accurate straight, curved, orbital, and bevel cutting in wood, steel, plastics, panels, and other compatible construction and workshop materials.
⚙️ What It Is
The Milwaukee HD18 JSB-0 4933417845 is a professional cordless jigsaw from Milwaukee’s M18 18 V platform. Its compact body-grip design provides close control over the cutting line, making the machine suitable for woodworking, furniture production, installation work, construction, renovation, and industrial maintenance.
The tool uses a powerful 4-pole Milwaukee motor combined with REDLINK™ electronic overload protection. This system is designed to protect the motor, electronics, and battery during demanding cutting operations while maintaining reliable performance.
The HD18 JSB provides two electronic stroke-rate settings of approximately 2,050 and 2,700 strokes per minute. A 26 mm stroke length and four pendulum-action settings plus a neutral position allow the operator to adjust cutting behaviour according to material and required finish. Milwaukee specifies a maximum cutting capacity of 120 mm in wood and 10 mm in steel.
A large, low-position guide roller with needle bearing supports accurate blade guidance. The tool also features the Milwaukee FIXTEC™ quick-change blade system, an adjustable chip blower, a durable die-cast aluminium base, and a removable plastic glide shoe for protecting finished work surfaces.
✅ Key Features
- Professional Milwaukee M18 cordless jigsaw
- Powerful 4-pole motor
- REDLINK™ electronic overload protection
- Two electronic stroke-rate settings
- 2,050 / 2,700 strokes per minute
- 26 mm blade stroke
- Four pendulum-action settings plus neutral position
- FIXTEC™ tool-free blade changing
- Precision low-position guide roller
- Adjustable chip blower
- Die-cast aluminium base plate
- Plastic glide shoe for surface protection
- Bevel cutting up to 45°
- Compatible with Milwaukee M18 batteries
- Designed for professional continuous use
- Bare-tool configuration
🏭 Applications
The Milwaukee HD18 JSB-0 is suitable for:
- Professional woodworking
- Carpentry
- Furniture manufacturing
- Cabinetmaking
- Construction and renovation
- Interior fitting
- Cutting timber and wooden panels
- Cutting plywood and MDF
- Steel cutting
- Plastic and composite cutting
- Curved and contour cutting
- Bevel cutting
- Machine installation
- Industrial maintenance
- On-site repair and fabrication
Always select the correct jigsaw blade according to the material, thickness, and required cutting quality.
🔧 Technical Specifications
Manufacturer: Milwaukee
Model: HD18 JSB-0
Article Number: 4933417845
EAN / GTIN: 4002395241590
Product Type: Cordless Jigsaw
Battery Platform: Milwaukee M18
Voltage: 18 V
Battery Type: Li-Ion
Motor: Milwaukee 4-pole motor
No-Load Stroke Rate: 2,050 / 2,700 strokes/min
Stroke Length: 26 mm
Pendulum Action: 4 settings + neutral position
Maximum Cutting Capacity – Wood: 120 mm
Maximum Cutting Capacity – Steel: 10 mm
Maximum Bevel Angle: 45°
Blade Change: FIXTEC™ tool-free system
Base Plate: Die-cast aluminium
Chip Blower: Adjustable
Weight with 4.0 Ah Battery: Approx. 2.9 kg for the corresponding battery-equipped configuration
Battery Included: No
Charger Included: No
Protection Rating: Refer to the manufacturer’s datasheet.
Operating Temperature: Refer to Milwaukee documentation.
Dimensions: Refer to the manufacturer’s documentation.
Country of Manufacture: Refer to the product identification label.
🔄 Compatibility
The Milwaukee HD18 JSB-0 is part of the Milwaukee M18 cordless system and is compatible with suitable Milwaukee M18 battery packs. Milwaukee officially describes the model as fully compatible with its M18 product platform.
Replacement jigsaw blades should be selected according to:
- Blade mounting interface
- Material being cut
- Material thickness
- Required cutting speed
- Tooth geometry
- Desired surface finish
Before ordering batteries, chargers, blades, or spare parts, verify compatibility using model HD18 JSB-0 and article number 4933417845.
🛠 Installation & Maintenance
Remove the battery before installing or replacing a saw blade.
Insert the appropriate blade into the FIXTEC™ quick-change mechanism and ensure that it is correctly seated in the guide roller. Select the required stroke speed and pendulum setting according to the workpiece.
For bevel cutting, adjust the base to the required angle and securely lock it before operation.
Keep the blade holder, guide roller, ventilation openings, base plate, and chip blower clean. Regular inspection of the blade guide and battery contacts is recommended.
⚠️ Safety & Precautions
- Remove the battery before changing blades or performing maintenance.
- Wear suitable eye and hearing protection.
- Secure the workpiece before cutting.
- Keep hands away from the moving blade.
- Select the correct blade for each material.
- Do not use bent, cracked, or damaged blades.
- Verify blade and base adjustment before operation.
- Do not modify the tool or battery system.
- Store the tool and batteries in a clean, dry environment.
- Follow Milwaukee operating and workplace safety instructions.
📦 Product Details
Form: Cordless bare power tool
Manufacturer: Milwaukee
Product Type: Cordless Jigsaw
Model: HD18 JSB-0
Part Number: 4933417845
EAN: 4002395241590
Series: M18
Voltage: 18 V
Application: Professional woodworking, construction, fabrication, installation, and maintenance
Condition: Refer to product listing
Package Includes:
- Milwaukee HD18 JSB-0 cordless jigsaw
- 2 × saw blades
- Plastic glide shoe
Battery: Not included
Charger: Not included
Transport Case: Not included
Warranty: Refer to applicable Milwaukee and InduParts.eu warranty terms.
