SIEMENS SIMATIC S7 6ES7132-6BF01-0BA0 + 6ES7193-6BP00-0BA0

SIEMENS SIMATIC S7 6ES7132-6BF01-0BA0 + 6ES7193-6BP00-0BA0
ET 200SP digital output module set with BaseUnit for reliable 24 V DC actuator control.

Category: Industrial Automation / Digital Output Module Set
Purpose: Switching digital output signals for relays, valves, lamps, contactors, and small actuators in SIMATIC ET 200SP systems

🌿 What It Is

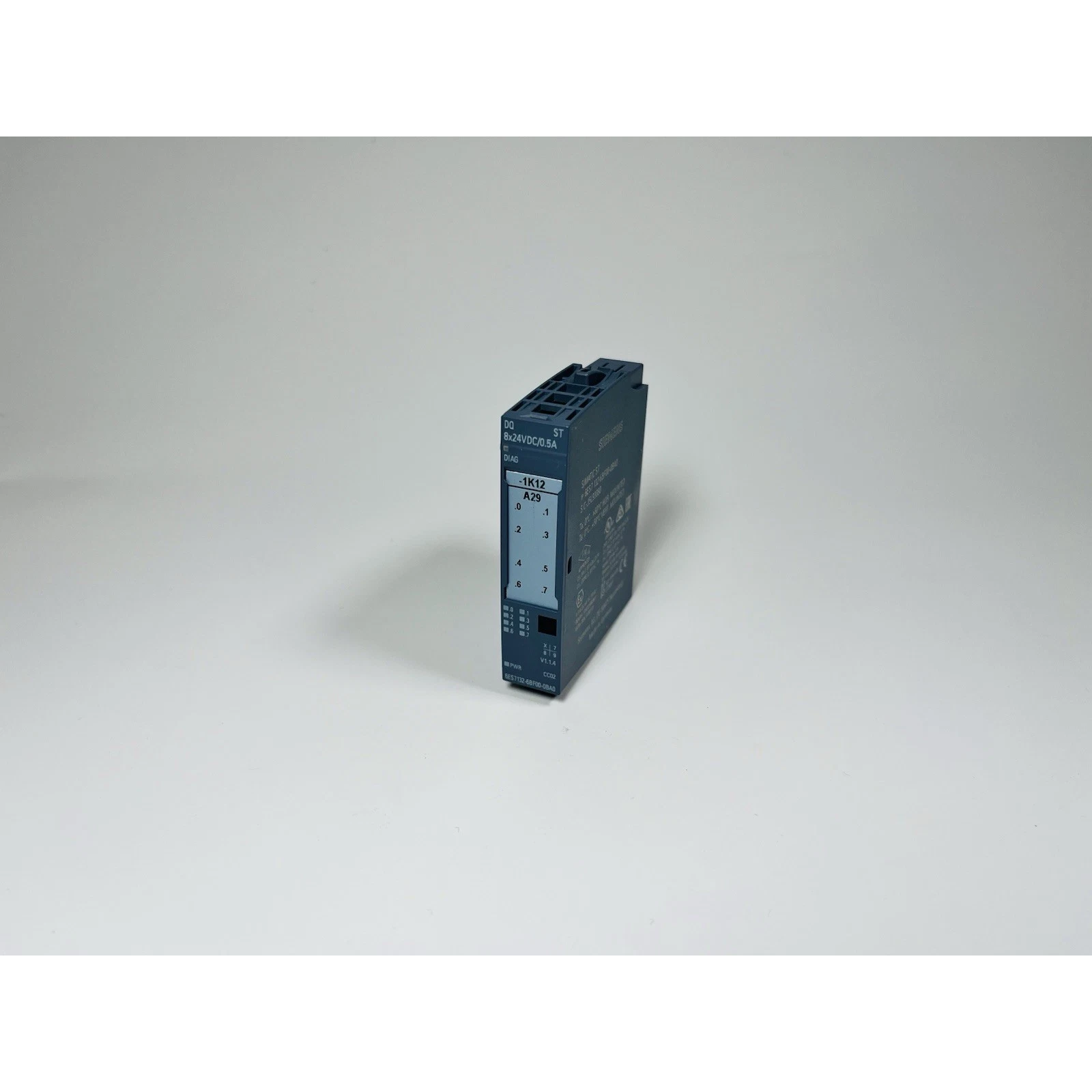

The Siemens SIMATIC S7 6ES7132-6BF01-0BA0 is a SIMATIC ET 200SP digital output module with 8 outputs, designed for 24 V DC / 0.5 A standard output control. It uses source output / PNP, P-switching technology and is suitable for controlling industrial field devices such as relays, signal lamps, solenoid valves, and small actuators. The included 6ES7193-6BP00-0BA0 BaseUnit is a BU15-P16+A0+2B, BU type A0 with push-in terminals, without AUX terminals, and bridged to the left.

✅ Key Benefits

• Designed for SIMATIC ET 200SP distributed I/O systems
• Provides 8 digital output channels
• Output rating: 24 V DC / 0.5 A
• Source output / PNP, P-switching design
• Supports module diagnostics for short circuit, wire break, and supply voltage monitoring
• Fits compatible BU type A0 BaseUnits
• Includes 6ES7193-6BP00-0BA0 push-in BaseUnit
• Compact 15 mm ET 200SP installation format

🧴 Use & Installation

1. Mount the 6ES7193-6BP00-0BA0 BaseUnit in the ET 200SP station.
2. Insert the 6ES7132-6BF01-0BA0 DQ module into the compatible BU type A0 BaseUnit.
3. Connect output loads such as relays, lamps, valves, or actuators to the push-in terminals.
4. Supply the required 24 V DC load voltage according to the Siemens wiring diagram.
5. Configure the module in TIA Portal, STEP 7, or the compatible automation environment.
6. Test all output channels and diagnostics before production operation.

⚠️ Safety & Precautions

• Installation must be performed by qualified electrical or automation personnel.
• Disconnect power before mounting, wiring, or replacing the module or BaseUnit.
• Use only with compatible SIMATIC ET 200SP components.
• Do not exceed the rated 0.5 A output current per channel.
• Check polarity, load type, wiring, and BaseUnit compatibility before commissioning.
• Use under technical supervision in industrial automation environments.

📦 Product Details
Form: ET 200SP digital output module with BaseUnit
Active Components: DQ 8x24VDC/0.5A ST module + BU15-P16+A0+2B BaseUnit
Target Group: Automation engineers, PLC technicians, machine builders, maintenance teams
Manufacturer: Siemens
Output Module: 6ES7132-6BF01-0BA0
BaseUnit: 6ES7193-6BP00-0BA0
Product Family: SIMATIC ET 200SP
Output Type: Digital output, source output, PNP / P-switching
Outputs: 8 digital outputs
Output Voltage: 24 V DC
Output Current: 0.5 A per output
BaseUnit Type: BU type A0
BaseUnit Terminals: Push-in terminals, without AUX terminals, bridged to the left
BaseUnit Size: 15 × 117 mm
Application Areas: PLC control, machine automation, actuator switching, production lines, control cabinets
Pack Size: 1 digital output module + 1 BaseUnit

🛒 Buy SIEMENS SIMATIC S7 6ES7132-6BF01-0BA0 + 6ES7193-6BP00-0BA0
Order the Siemens ET 200SP DQ 8x24VDC/0.5A digital output module with BaseUnit from Induparts for reliable actuator control in industrial automation systems.
